Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LCB3588s
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces/mon
SoC: |
RK3588s |
Supplier Type: |
OEM/ODM |
CPU: |
4A76 + 4A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K |
DDR: |
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities. |
EMMC: |
EMMC 5.1, With Options For 32GB, 64GB, Or 128GB Capacities. |
Working Temperature: |
Enterprise Grade: -20°C To 70°C |
PCB Interface: |
B2B(280 Pin 0.8mm Pitch) + FPC(2 * 30 Pin 0.5mm Pitch) |
Embedded: |
Yes |
OS: |
Android / Ubuntu / Buildroot / Debian |
Application: |
Medical Equipment/Networking And NAS |
SoC: |
RK3588s |
Supplier Type: |
OEM/ODM |
CPU: |
4A76 + 4A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K |
DDR: |
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities. |
EMMC: |
EMMC 5.1, With Options For 32GB, 64GB, Or 128GB Capacities. |
Working Temperature: |
Enterprise Grade: -20°C To 70°C |
PCB Interface: |
B2B(280 Pin 0.8mm Pitch) + FPC(2 * 30 Pin 0.5mm Pitch) |
Embedded: |
Yes |
OS: |
Android / Ubuntu / Buildroot / Debian |
Application: |
Medical Equipment/Networking And NAS |

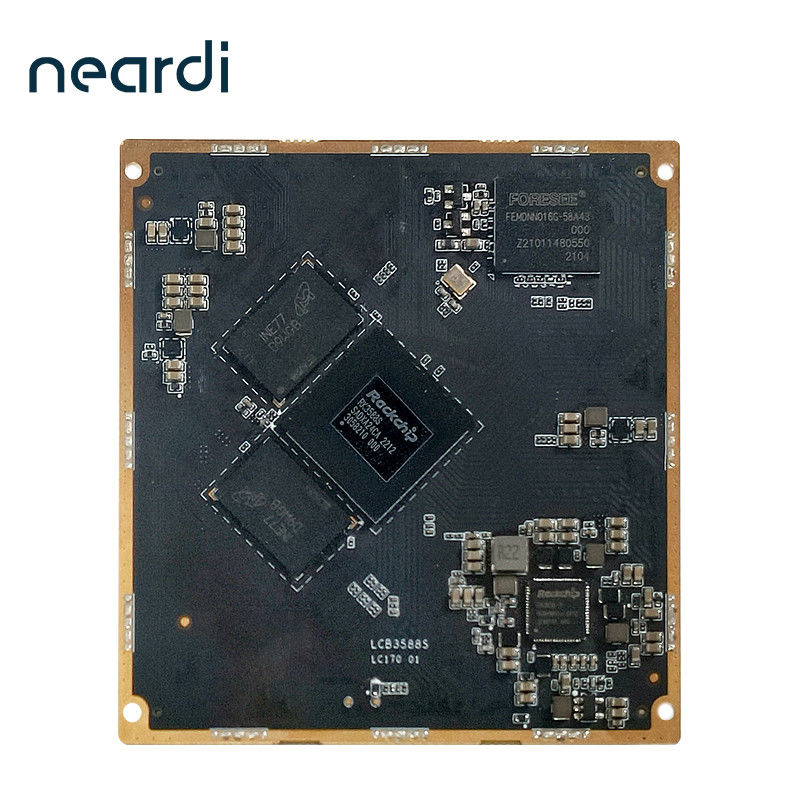

The LCB3588S is a high-performance core module designed around the Rockchip RK3588S chip platform. Compactly built with dimensions of 75mm x 70mm, it connects to the baseboard using two 140Pin board-to-board connectors (0.8mm pitch) and four 30Pin FPC connectors (0.5mm pitch), secured with four M2 screws. This configuration ensures access to all external pin signals of the RK3588S while providing excellent reliability, cost efficiency, and design flexibility. FPC connectors can be tailored to meet specific functional needs, offering superior durability compared to smaller-pitch or card-edge connectors in industrial and vehicular environments.
The module features an RK3588S CPU, LPDDR4/LPDDR4X memory (available in 2GB, 4GB, 8GB, or 16GB configurations), high-speed eMMC 5.1 storage (32GB, 64GB, or 128GB), and a PMU system comprising the RK806 and advanced DC-DC and LDO components, with DVFS support for optimized power management.
Adhering to a modular design philosophy, the LCB3588S exposes all functional CPU pins and has undergone rigorous testing and mass production verification. By leveraging this module, users can streamline product development, cut costs, and enhance project efficiency.
Function | Description |
CPU | RK3588S 8nm; 8-core 64-bit processor architecture (4A76 + 4A55) |
GPU |
ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; |
NPU | 6TOPS computing power / 3-core architecture; Supports int4/int8/int16/FP16/BF16/TF32. |
VPU |
Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS; |
DDR | LPDDR4, with options for 4GB/8GB/16GB. |
eMMC | eMMC 5.1, with options for 32GB/64GB/128 GB. |
PMU | RK806 |
OS | Android / Ubuntu / Buildroot / Debian |
Video Input Interface | MIPI interface : 2*MIPI-CSI DPHY 4L / CPHY 3L 2*MIPI-CSI DPHY 2L HDMI RX interface: HDMI 2.0 2160p@60 Hz, Support HDCP2.3 and HDCP1.4; |
Video Output Interface | 1 * HDMI2.1 up to 8K@60fps; 1 * HDMI2.0 up to 4K@60fps; 2 * MIPI-DSI up to 4K@60fps; 1 * BT.1120 up to 1080@60fps; |
Image Signal Processor | 8064*6048@15 dual ISP; 6528*4898@30 dual ISP; 4672*3504@30 single ISP; |
Video Output Processor | Video Port0 up to 7680*4320@60Hz; Video Port1 up to 4096*4320@60Hz; |
Operating temperature | Enterprise Grade: -20°C to 70°C |
PCB interface | B2B(280 Pin 0.8mm Pitch) + FPC(2 * 30 Pin 0.5mm Pitch) |
PCB layers | 10 layers |
PCB size | L* W *H(mm):75 *70 * 7.5(PCB thickness 1.6mm) |
Wiki Documentation: | http://wiki.neardi.net/docs/welcome |
GitHub: | https://github.com/neardiGitLab: https://gitlab.com/neardiSDK |
Repository: | https://gitlab.com/neardi-linux |
Forum: | https://forum.neardi.com |
Video Tutorials: | https://www.youtube.com/@neardichannels |
