Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LCS3588
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces/mon
SoC: |
RK3588 |
Supplier Type: |
OEM/ODM |
CPU: |
4A76 + 4A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K |
DDR: |
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities. |
EMMC: |
EMMC 5.1, With Options For 32GB, 64GB, Or 128GB Capacities. |
Working Temperature: |
Enterprise Grade: -20°C To 70°C Industrial Grade: -40°C To 85°C |
PCB Interface: |
B2B(400 Pin 0.4mm Pitch) |
Embedded: |
Yes |
OS: |
Android / Ubuntu / Buildroot / Debian |
Application: |
Industrial Automation |
SoC: |
RK3588 |
Supplier Type: |
OEM/ODM |
CPU: |
4A76 + 4A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K |
DDR: |
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities. |
EMMC: |
EMMC 5.1, With Options For 32GB, 64GB, Or 128GB Capacities. |
Working Temperature: |
Enterprise Grade: -20°C To 70°C Industrial Grade: -40°C To 85°C |
PCB Interface: |
B2B(400 Pin 0.4mm Pitch) |
Embedded: |
Yes |
OS: |
Android / Ubuntu / Buildroot / Debian |
Application: |
Industrial Automation |

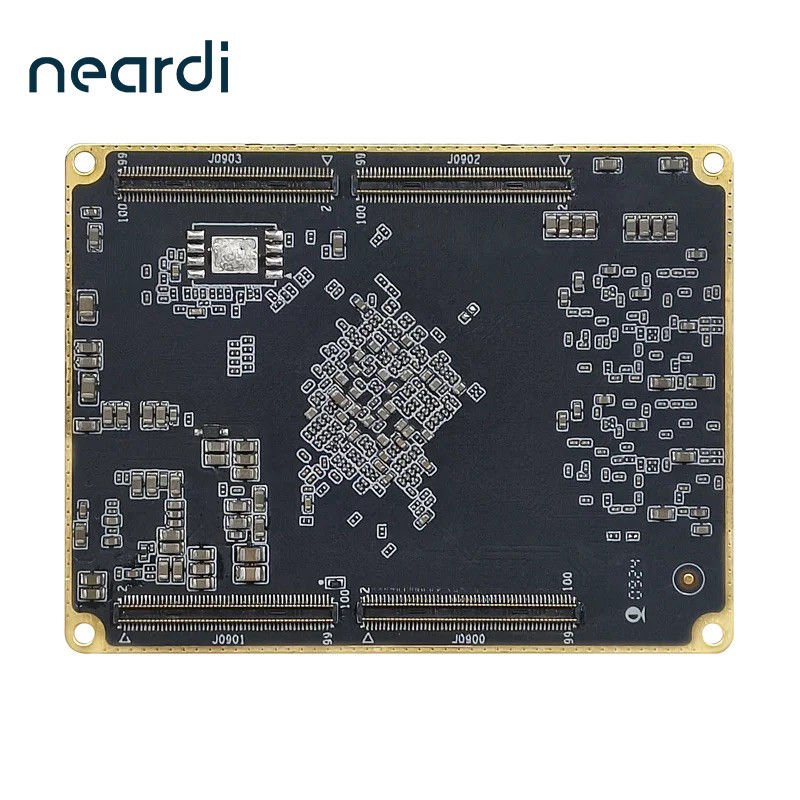

The LCS3588 is a compact yet robust core module, carefully designed around the Rockchip RK3588 chip platform, with dimensions of 65mm x 50mm. Its connection to the baseboard employs four 100Pin board-to-board connectors (0.4mm pitch) secured by four M2 screws. This setup ensures full utilization of the RK3588’s pin signals while supporting high-speed data transmission, diverse stacking height options, automation assembly compatibility, vibration resistance, and operational stability across wide temperature ranges. Its construction is environmentally compliant and error-proof, with high-quality materials ensuring long-term reliability, even in demanding industrial environments.
Equipped with the RK3588 CPU, LPDDR4/LPDDR4X memory (2GB to 16GB), high-speed eMMC 5.1 storage (32GB to 128GB), and a PMU system featuring the RK806 and advanced DC-DC and LDO components, the LCS3588 ensures energy efficiency through DVFS support.
Adopting a modular design, the LCS3588 brings out all CPU functional pins, rigorously tested and mass-verified. By integrating this module, users can streamline development, reduce costs, and achieve higher efficiency in product design and deployment.
Function | Description |
CPU | RK3588S 8nm; 8-core 64-bit processor architecture (4A76 + 4A55) |
GPU |
ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; |
NPU | 6TOPS computing power / 3-core architecture; Supports int4/int8/int16/FP16/BF16/TF32. |
VPU |
Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS; |
DDR | LPDDR4, with options for 4GB/8GB/16GB. |
eMMC | eMMC 5.1, with options for 32GB/64GB/128 GB. |
PMU | RK806 |
OS | Android / Ubuntu / Buildroot / Debian |
Video Input Interface | MIPI interface : 2 * MIPI(4 lanes) + 4 * MIPI(2 lanes), totally support 6 cameras input; 3 * MIPI(4 lanes) + 2 * MIPI(2 lanes), totally support 5 cameras input; 4 * MIPI(4 lanes) , totally support 4 cameras input; DVP interface: 8/10/12/16-bit standard DVP interface, up to 150MHz input data; HDMI RX interface: HDMI 2.0 2160p@60 Hz, Support HDCP2.3 and HDCP1.4; |
Video Output Interface | 1 * HDMI2.1 up to 8K@60fps; 1 * HDMI2.0 up to 4K@60fps; 2 * MIPI-DSI up to 4K@60fps; 2 * DP1.4 up to 8K@30fps; 2 * eDP1.3 up to 4K@60Hz; 1 * BT.1120 up to 1080@60fps; |
Image Signal Processor | 8064*6048@15 dual ISP; 6528*4898@30 dual ISP; 4672*3504@30 single ISP; |
Video Output Processor | Video Port0 up to 7680*4320@60Hz; Video Port1 up to 4096*4320@60Hz; |
Operating temperature | Enterprise Grade: -20°C to 70°C Industrial Grade: -40°C to 85°C |
PCB interface | B2B(400 Pin 0.4mm Pitch) |
PCB layers | 12 layers |
PCB size | L* W *H(mm):65 *50 * 4.74 |
Wiki Documentation: | http://wiki.neardi.net/docs/welcome |
GitHub: | https://github.com/neardiGitLab: https://gitlab.com/neardiSDK |
Repository: | https://gitlab.com/neardi-linux |
Forum: | https://forum.neardi.com |
Video Tutorials: | https://www.youtube.com/@neardichannels |
