Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi

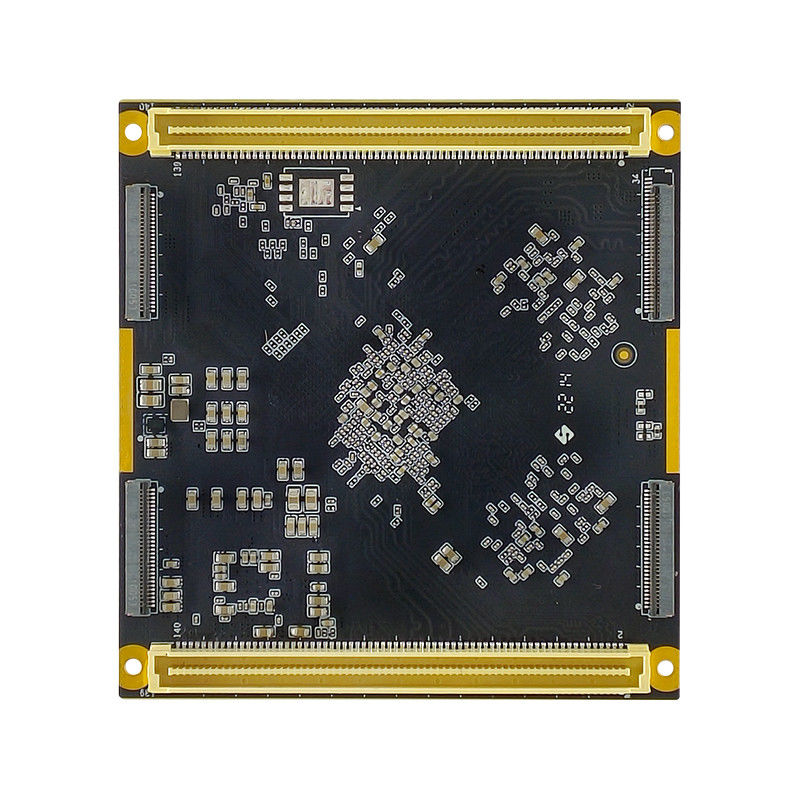

Model Number: LCB3588
Document: LCB3588 System On ModuleV1.....0.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000/pieces/mon
SoC: |
RK3588 |
Supplier Type: |
OEM/ODM |
CPU: |
4*A76+4*A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 Tops |
VPU: |
8K60FPS |
DDR: |
LPDDR4/LPDDR4X, 4GB/8GB/16GB |
EMMC: |
EMMC 5.1, 32GB/64GB/128GB |
Working Temperature: |
Industrial Grade: -40℃~+85℃ Expand Commercial Grade:-20℃~ 70℃ |
PCB Interface: |
B2B |
Embedded: |
Yes |
OS: |
Android/Ubuntu/Buildroot/Debian |
Application: |
Self-service Terminal, 5G Smart Terminal, Etc,., In Car |
SoC: |
RK3588 |
Supplier Type: |
OEM/ODM |
CPU: |
4*A76+4*A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 Tops |
VPU: |
8K60FPS |
DDR: |
LPDDR4/LPDDR4X, 4GB/8GB/16GB |
EMMC: |
EMMC 5.1, 32GB/64GB/128GB |
Working Temperature: |
Industrial Grade: -40℃~+85℃ Expand Commercial Grade:-20℃~ 70℃ |
PCB Interface: |
B2B |
Embedded: |
Yes |
OS: |
Android/Ubuntu/Buildroot/Debian |
Application: |
Self-service Terminal, 5G Smart Terminal, Etc,., In Car |
Function | Description |
SOC | RK3588 8nm, 4*A76+4*A55 |
GPU | ARM Mali-G610 MC4; OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2OpenCL 1.1/1.23/2.0. |
NPU | 6TOPS, int4/int8/int16/FP16/BF16/TF32 |
VPU | Decode: H.265/H.264/AV1/VP9/AVS2, 8K60FPSEncode: H.264/H.265, 8K30FPS |
DDR | LPDDR4/LPDDR4X, 4GB/8GB/16GB |
eMMC | eMMC 5.1, 32GB/64GB/128GB |
PMU | RK806 |
Hardware Info
Video Input Interface | MIPI interface: 2 * MIPI(4 lanes) + 4 * MIPI(2 lanes), totally support 6 cameras input; 3 * MIPI(4 lanes) + 2 * MIPI(2 lanes), totally support 5 cameras input; 4 * MIPI(4 lanes) , totally support 4 cameras input; |
DVP interface: 8/10/12/16-bit standard DVP interface, up to 150MHz input data; | |
HDMI RX interface: HDMI 2.0 2160p@60 Hz, Support HDCP2.3 and HDCP1.4; | |
Video Output Interface | 1 * HDMI2.1 up to 8K@60fps; 1 * HDMI2.0 up to 4K@60fps; 2 * MIPI-DSI up to 4K@60fps; 2 * DP1.4 up to 8K@30fps; 2 * eDP1.3 up to 4K@60Hz; 1 * BT.1120 up to 1080@60fps; |
Image Signal Processor | 8064*6048@15 dual ISP; 6528*4898@30 dual ISP; 4672*3504@30 single ISP; |
Video Output Processor | Video Port0 up to 7680*4320@60Hz; Video Port1 up to 4096*4320@60Hz; |
Wiki Documentation: | http://wiki.neardi.net/docs/welcome |
GitHub: | https://github.com/neardiGitLab: https://gitlab.com/neardiSDK |
Repository: | https://gitlab.com/neardi-linux |
Forum: | https://forum.neardi.com |
Video Tutorials: | https://www.youtube.com/@neardichannels |
