Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LBA3588S
Document: LBA3588S Development Board ...0 .pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces/mon
SoC: |
RK3588s |
Supplier Type: |
OEM/ODM |
CPU: |
8 Nm, 4*A76+4*A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K |
DDR: |
LPDDR4, 4GB/8GB/16GB(Optional) |
EMMC: |
EMMC 5.1, 32GB/64GB/128GB(Optional) |
Working Temperature: |
-10 ~ 70℃ |
Embedded: |
Yes |
PCB Interface: |
B2B |
OS: |
Android/Buildroot/Debian/Ubuntu |
Application: |
Robotics |
SoC: |
RK3588s |
Supplier Type: |
OEM/ODM |
CPU: |
8 Nm, 4*A76+4*A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K |
DDR: |
LPDDR4, 4GB/8GB/16GB(Optional) |
EMMC: |
EMMC 5.1, 32GB/64GB/128GB(Optional) |
Working Temperature: |
-10 ~ 70℃ |
Embedded: |
Yes |
PCB Interface: |
B2B |
OS: |
Android/Buildroot/Debian/Ubuntu |
Application: |
Robotics |

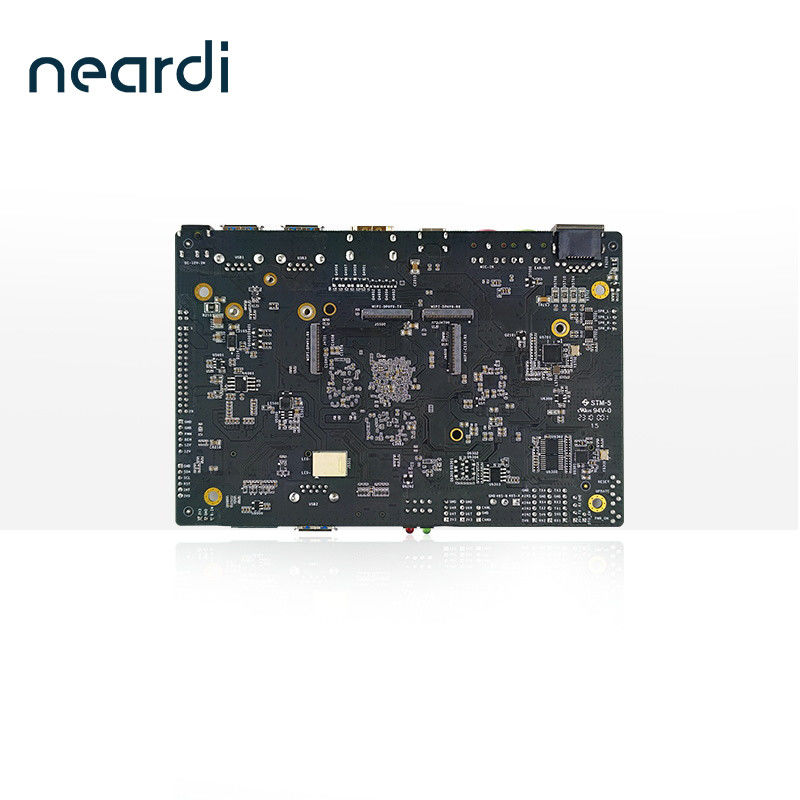

Neardi LBA3588S RK3588S Android Embedded Board With Wifi NPU 6 TOPS DDR 4GB/8GB/16GB Optional For Android TV
LBA3588S is a multifunctional industry board carefully designed based on the Rockchip RK3588S chip platform. The whole board has various functions, rich interfaces, small size, thin and flat, suitable for products with limited structural space.
LBA3588S supports Android, Buildroot, Debian, and Ubuntu systems, has advantages such as high performance, high reliability, and high scalability, and opens system source code to users. Users can carry out secondary development and customization based on this product. Our company provides developers and enterprise users with comprehensive technical support to enable them to complete research and development work efficiently and greatly shorten the product research and development and mass production cycle.
Function | Description |
SOC | RK3588S 8nm; 4*A76+4*A55 |
GPU | ARM Mali-G610 MC4; OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2 OpenCL 1.1/1.23/2.0 |
NPU | 6 TOPS, supports INT4/INT8/INT16/FP16/BF16/TF32 |
VPU | Decode: 8K@60fps H.265/H.264/AV1/VP9/AVS2Encode: 8K@30fps H.264/H.265 |
DDR | 4GB/8GB/16GB LPDDR4 |
eMMC | eMMC 5.1, 32GB/64GB/128GB |
System | Android / Ubuntu / Buildroot / Debian |
Size | L*W*H(mm) 150*100*12.67 |
Working Temperature | -10 - 70℃ |
Weight | 112g |
Hardware | |
Power | DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
USB | 3*Type-A USB3.0 HOST 1* Type-C USB3.1 OTG |
Display | 1*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps Dual channel LVDS up to 1080P@60HZ |
Audio | φ3.5mm earphone Jack with L/R audio out φ3.5mm microphone Jack with Mic in 2*2.7W/4Ω speaker out with L/R channel |
Camera | 2* MIPI CSI (4 Lane) or 4*MIPI CSI (2 Lane) + 2* MIPI CSI (4 Lane) |
Mini-PCIe | mini PCIe for 2G/3G/4G/5G module RK1808 AI computing card |
M.2 | M.2 NGFF ( M-KEY ) PCIE V3.0 x4 with NVMe SSD supported |
SD card | Compatible with SDIO 3.0 protocol, system boot-up supported |
SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
RJ-45 | 1*10/100/1000-Mbps data transfer rates |
RTC | RTC power on and off supported |
Serial port | 2*Uart,1*CANBUS,2*RS232,RS485,1*I2C |
Keys | 3* keys (power, reset, update) |
Wiki Documentation: | http://wiki.neardi.net/docs/welcome |
GitHub: | https://github.com/neardiGitLab: https://gitlab.com/neardiSDK |
Repository: | https://gitlab.com/neardi-linux |
Forum: | https://forum.neardi.com |
Video Tutorials: | https://www.youtube.com/@neardichannels |
