Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LCB3399
Document: LCB3399 System On ModuleV1.....0.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 10000/pieces/mon
SoC: |
RK 3399 |
Supplier Type: |
OEM/ODM |
CPU: |
Dual Cortex-A72 Plus Quad Cortex-A53 Architecture |
GPU: |
ARM Mali-T860MP4 |
NPU: |
3 TOPS |
VPU: |
4K/1080P |
DDR: |
LPDDR4, 3GB/6GB (Optional) |
EMMC: |
EMMC 5.1, 16GB/64GB (Optional) |
PCB Interface: |
B2B, 240 Pin |
OS: |
Android / Ubuntu / Buildroot / Debian |
SoC: |
RK 3399 |
Supplier Type: |
OEM/ODM |
CPU: |
Dual Cortex-A72 Plus Quad Cortex-A53 Architecture |
GPU: |
ARM Mali-T860MP4 |
NPU: |
3 TOPS |
VPU: |
4K/1080P |
DDR: |
LPDDR4, 3GB/6GB (Optional) |
EMMC: |
EMMC 5.1, 16GB/64GB (Optional) |
PCB Interface: |
B2B, 240 Pin |
OS: |
Android / Ubuntu / Buildroot / Debian |
Experience Unmatched Flexibility with Our Customizable Linux SoM Module

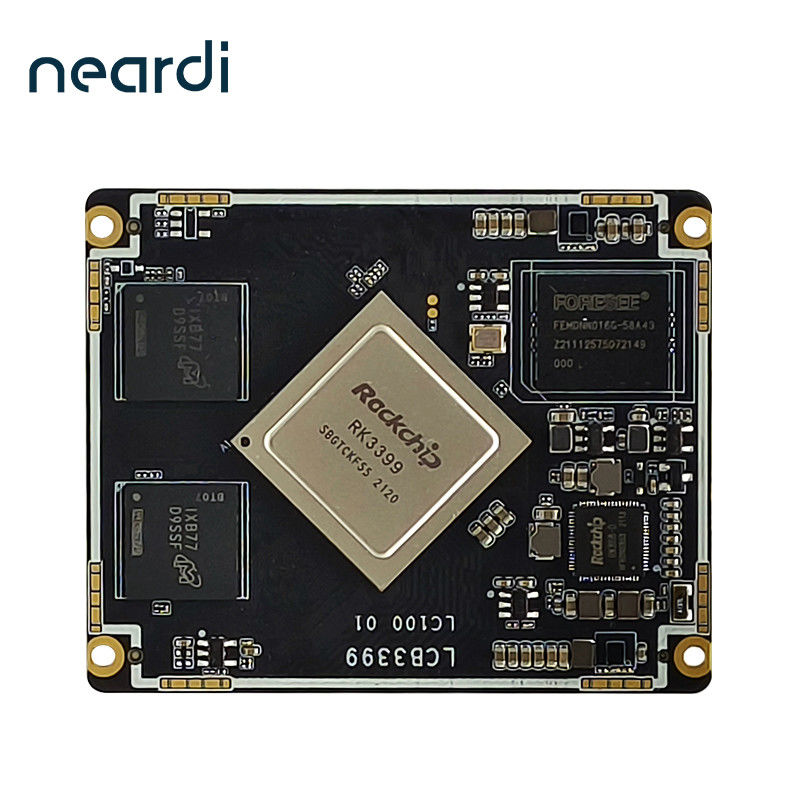

Introducing the LCB3399, a compact and fully functional core module designed around Rockchip's RK3399 chip platform. With a size of only 62mm x 50mm, it connects to the base plate using two Tyco/AMP 0.8mm pitch double row 120Pin connectors and is fixed with four M2 screws. This configuration offers stability, reliability, and easy installation and maintenance.
| Function | Description |
| CPU | RK3399, 28 nm HKMG, Big cluster with dual-coreCortex-A72 + little cluster with quad-core Cortex-A53 |
| GPU | Mali- T860 MP4,OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 |
| VPU | 4K VP9 and 4K H265 up to 60fps video decoding 1080P@60fps multi-format video decoding (MVC, mpeg-1/2/4, VC-1) 1080P video encoding, with h.264, MVC, and VP8 format supported Video anti-cross, de-noising, edge/detail/color optimization supported |
| DDR | LPDDR3,2GB/4GB(Optional) |
| eMMC | eMMC 5.1, 8GB/16GB/32GB/64GB/128GB(Optional) |
| PMU | RK808, Supports a variety of power supply |
| Camera Interface | Two ISP built-in Dual MIPI-CSI 4 Lane of 1.5 Gbps/Lane ITU-R BT 601/656 compliant The maximum input resolution of one ISP is 14M pixels |
| Display Interface | Two VOP embedded Dual MIPI-DSI 4 Lane of 1.5 Gbps/Lane up to 2560x1600@60fps eDP1.3 4 Lane of 2.7/1.62 Gbps/lane DP1.2 4 Lane with HDCP2.2 up to 4kx2k at 60Hz resolution HDMI2.0 3 Lane with HDCP2.2 |
| USB Interface | HOST*2,TYPE-C*1 |
| TYPE-C Interface | Type-C PHY with Type-C V1.1 and USB PD2.0 Attach/detach detection and signaling as DFP, UFP, and DRP Support USB3.0 Type-C and DisplayPort 1.2 Alt Mode Up to 5Gbps data rate for USB3.0 Up to 5.4Gbps (HBR2) data rate for DP1.2 |
| Audio Interface | Two I2S/PCM built-in up to 8 channels TX and 8 channels RX SPDIF supported Audio resolution from 16bits to 32bits Sample rate up to 192KHz Provides master and slave work mode, software configurable Support 3 I2S formats (normal, left-justified, right-justified) Support 4 PCM formats (early, late1, late2, late3) Support two 16-bit audio data stored together in one 32-bit wide location Support 16, 20, 24 bits audio data transfer in linear PCM mode |
| Connectivity | Compatible with SDIO 3.0 protocol GMAC 10/100/1000M Ethernet Controller Six on-chip SPI controllers Five on-chip UART controllers inside Eight on-chip I2C controllers Five groups of GPIO (GPIO0~GPIO4), totally have 100+ GPIOs Five-channel single-ended 10-bit SAR-ADC up to 1MS/s sampling rate |
| OS | Android / Ubuntu / Buildroot |
| PCB interface | B2B,240 Pin |
| PCB size | L* W *H(mm):62 * 50 * 7.8(PCB 1.2mm) |
The System On Module (SoM) product technical support and services include:
- Assistance with product selection and evaluation
- Customization and design services
- Technical documentation and software resources
- Product testing and validation
- Troubleshooting and issue resolution
- Lifecycle management and product obsolescence
Product Name: System On Module (SoM)
Product Description: A compact and highly integrated circuit board that contains all the components necessary for a functioning computer system.
Product Packaging: The SoM will be packaged in an anti-static bag to protect it from electrostatic discharge during transport. The bag will be placed in a sturdy cardboard box with foam padding to prevent damage during shipping.
Shipping: We ship our products using reputable shipping companies that provide tracking information to ensure timely delivery. Customers can choose from a variety of shipping options at checkout, including standard, expedited, or overnight shipping.
Q: Where is the SoM product manufactured?
A: The SoM product is manufactured in Shanghai, China.
Q: What is the brand name of the SoM product?
A: The brand name of the SoM product is Neardi.
Q: What is the minimum order quantity for the SoM product?
A: The minimum order quantity for the SoM product is 1 piece.
Q: What is the price of the SoM product?
A: The price of the SoM product is negotiable.
Q: What are the payment terms for purchasing the SoM product?
A: The payment terms for purchasing the SoM product include L/C, D/A, D/P, and T/T.
Q: What is the supply ability of the SoM product?
A: The supply ability of the SoM product is 10000 pieces per month.
Q: What is the delivery time for the SoM product?
A: The delivery time for the SoM product is 7 days.
Q: What are the packaging details for the SoM product?
A: The packaging details for the SoM product are 33.5×19×9 cm.
