LCS3588 SoM Industrial Computer System On Module ARM Mali G610 MC4 LPDDR4

Product Details

Place of Origin: Shanghai, China

Brand Name: Neardi

Model Number: LCS3588

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiable

Packaging Details: 33.5×19×9 cm

Delivery Time: 7 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 10000/pieces/mon

Get Best Price
Product Details
Highlight:

LCS3588 industrial system on module

,

LPDDR4 industrial system on module

,

Industrial arm computer on module

SoC:
RK3588
Supplier Type:
OEM/ODM
CPU:
4A76 + 4A55
GPU:
ARM Mali-G610 MC4
NPU:
6 TOPS
VPU:
8K
DDR:
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities.
EMMC:
EMMC 5.1, With Options For 32GB, 64GB, Or 128GB Capacities.
Working Temperature:
Enterprise Grade: -20°C To 70°C Industrial Grade: -40°C To 85°C
PCB Interface:
B2B(400 Pin 0.4mm Pitch)
Embedded:
Yes
OS:
Android / Ubuntu / Buildroot / Debian
Application:
Medical Equipment/Networking And NAS
SoC:
RK3588
Supplier Type:
OEM/ODM
CPU:
4A76 + 4A55
GPU:
ARM Mali-G610 MC4
NPU:
6 TOPS
VPU:
8K
DDR:
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities.
EMMC:
EMMC 5.1, With Options For 32GB, 64GB, Or 128GB Capacities.
Working Temperature:
Enterprise Grade: -20°C To 70°C Industrial Grade: -40°C To 85°C
PCB Interface:
B2B(400 Pin 0.4mm Pitch)
Embedded:
Yes
OS:
Android / Ubuntu / Buildroot / Debian
Application:
Medical Equipment/Networking And NAS
Product Description
Customizable System On Module SoM for Specific Customer Requirements LCS3588

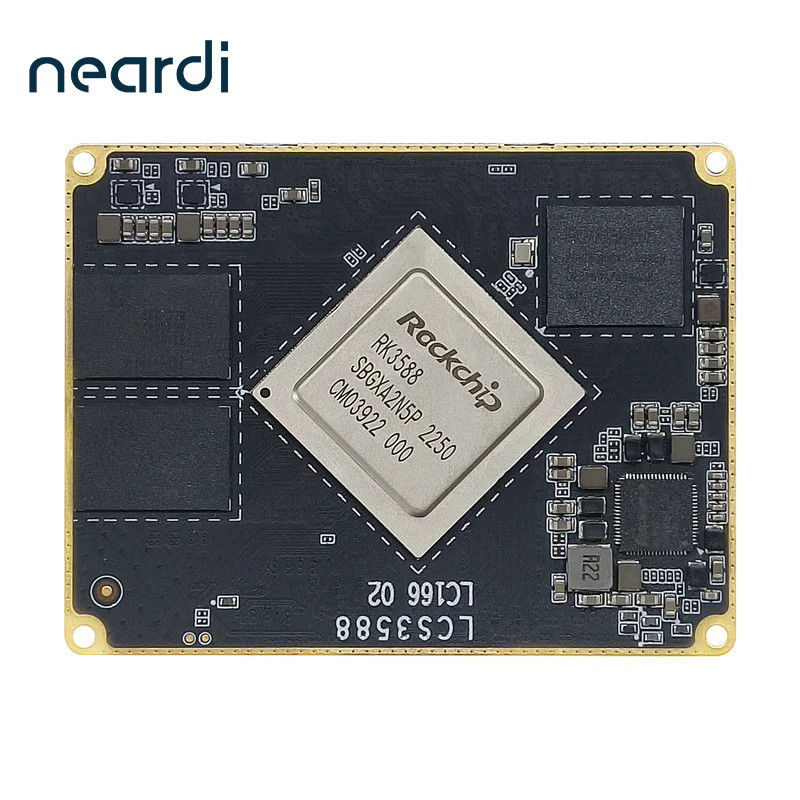

Designed with precision, the LCS3588 core module, built on the Rockchip RK3588 platform, offers powerful functionality in a compact 65mm x 50mm footprint. It connects to the baseboard using four 100Pin board-to-board connectors (0.4mm pitch) secured with four M2 screws, enabling complete access to RK3588 pin signals. The module excels in high-speed data transfer, vibration resistance, automated assembly compatibility, and a wide operating temperature range, making it suitable for challenging environments. Its construction prioritizes reliability, environmental compliance, and robust materials to ensure long-term performance.



The module integrates an RK3588 CPU, LPDDR4/LPDDR4X memory (available in 2GB to 16GB), high-speed eMMC 5.1 storage (32GB to 128GB options), and a power management system powered by the RK806, with advanced voltage regulation and DVFS support.



With a modular approach, the LCS3588 provides all functional pins of the CPU, thoroughly tested and verified for reliability. This enables businesses to save time, reduce development costs, and boost efficiency when building their products.


Product Parameters

Function Description
CPU RK3588S 8nm; 8-core 64-bit processor architecture (4A76 + 4A55)
GPU

ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2;
OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module.

NPU 6TOPS computing power / 3-core architecture; Supports
int4/int8/int16/FP16/BF16/TF32.
VPU

Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS;
Supports H.264/H.265 video encoding, up to 8K30FPS.

DDR LPDDR4, with options for 4GB/8GB/16GB.
eMMC eMMC 5.1, with options for 32GB/64GB/128 GB.
PMU RK806
OS Android / Ubuntu / Buildroot / Debian
Video Input Interface MIPI interface :
2 * MIPI(4 lanes) + 4 * MIPI(2 lanes), totally support 6 cameras input;
3 * MIPI(4 lanes) + 2 * MIPI(2 lanes), totally support 5 cameras input;
4 * MIPI(4 lanes) , totally support 4 cameras input;
DVP interface:
8/10/12/16-bit standard DVP interface, up to 150MHz input data;
HDMI RX interface:
HDMI 2.0 2160p@60 Hz, Support HDCP2.3 and HDCP1.4;
Video Output Interface 1 * HDMI2.1 up to 8K@60fps;
1 * HDMI2.0 up to 4K@60fps;
2 * MIPI-DSI up to 4K@60fps;
2 * DP1.4 up to 8K@30fps;
2 * eDP1.3 up to 4K@60Hz;
1 * BT.1120 up to 1080@60fps;
Image Signal Processor 8064*6048@15 dual ISP;
6528*4898@30 dual ISP;
4672*3504@30 single ISP;
Video Output Processor Video Port0 up to 7680*4320@60Hz;
Video Port1 up to 4096*4320@60Hz;
Operating temperature Enterprise Grade: -20°C to 70°C
Industrial Grade: -40°C to 85°C
PCB interface B2B(400 Pin 0.4mm Pitch)
PCB layers  12 layers
PCB size L* W *H(mm):65 *50 * 4.74

Developer's Must-Read!

Welcome to our Resource Center, where you can find various helpful links and information for developers.
Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.
