RK3588 Custom Single Board Computer CPU 8K With Wifi LKD3588 4A76 4A55

Product Details

Place of Origin: Shanghai, China

Brand Name: Neardi

Model Number: LKD3588

Document: LKD3588 Development Board V....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiable

Packaging Details: 33.5×19×9 cm

Delivery Time: 7 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 10000/pieces/mon

Get Best Price
Product Details
Highlight:

custom single board computer LKS3588

,

custom single board computer 8K

,

LKS3588 single board cpu

SoC:
RK3588
Supplier Type:
OEM/ODM
CPU:
4A76 + 4A55
GPU:
ARM Mali-G610 MC4
NPU:
6 TOPS
VPU:
8K
DDR:
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities.
EMMC:
EMMC 5.1, 32GB, 64GB, Or 128GB
Working Temperature:
-10 ~ 70℃
PCB Interface:
B2B
Embedded:
Yes
OS:
Android / Ubuntu / Buildroot / Debian
Application:
Smart Home And Retail
SoC:
RK3588
Supplier Type:
OEM/ODM
CPU:
4A76 + 4A55
GPU:
ARM Mali-G610 MC4
NPU:
6 TOPS
VPU:
8K
DDR:
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities.
EMMC:
EMMC 5.1, 32GB, 64GB, Or 128GB
Working Temperature:
-10 ~ 70℃
PCB Interface:
B2B
Embedded:
Yes
OS:
Android / Ubuntu / Buildroot / Debian
Application:
Smart Home And Retail
Product Description

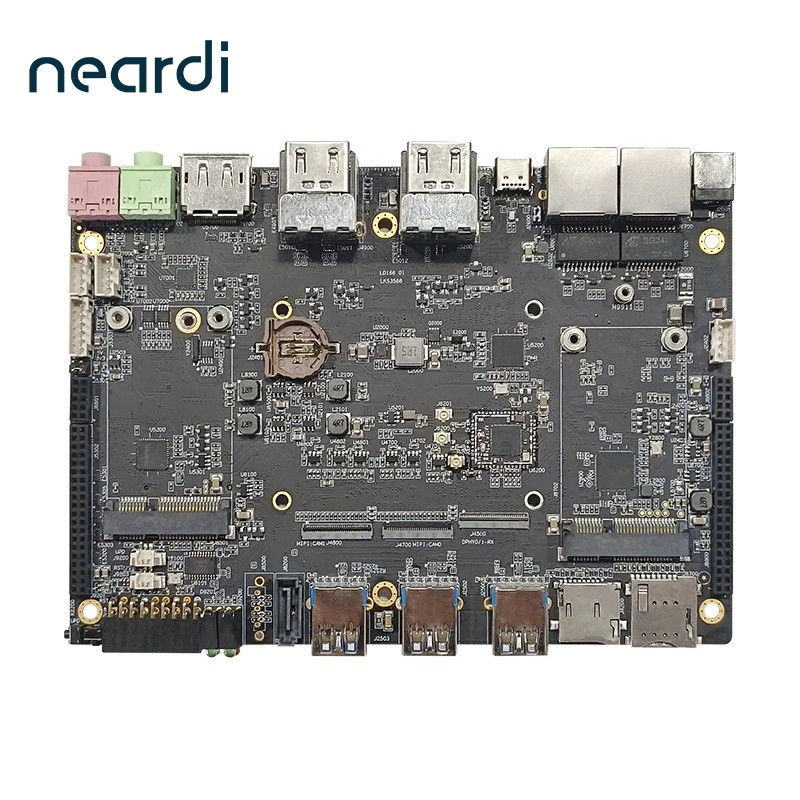

Neardi RK3588 Linux SBC LKD3588 4A76 + 4A55 Single Board Computer 8K

Introducing the LKD3588, a multifunctional development and evaluation board meticulously crafted around the Rockchip RK3588 chip platform. It comprises our company's LCB3588 core module and baseboard. The core module connects to the baseboard via a B2B connector and is fastened with four M2 screws, ensuring stability and reliability. This board is versatile, rich in interfaces, compact, and flat, making it ideal for products with limited structural space.


The LKD3588 includes 3 Type-A USB 3.0 HOST ports, 1 Type-C USB 3.1 OTG, and 1 USB 2.0 HOST interface with a 4-pin PH2.0 connector, allowing multiple USB cameras to connect. Additionally, it has 2 mini-PCIe slots for external 4G modules and NPU computing cards based on the RK1808. It supports common communication modules with dual-band WIFI6, BT5.0, dual 1000M Ethernet, UART, I2C, RS232, RS485, and CANBUS. The board offers 3 HDMI outputs, 1 dual-channel LVDS output, and 1 DP interface output for various display options and supports multi-screen display with different content. Additionally, it supports multiple MIPI-CSI camera interfaces for input and 1 HDMI 2.0 interface for input.



The LKD3588 is compatible with Android, buildroot, Debian, and Ubuntu operating systems, providing high performance, reliability, and scalability. Users receive open system source code, enabling them to develop and customize based on this product. Our company provides comprehensive technical support for developers and enterprise users, facilitating efficient research, and development, and significantly shortening the product development and mass production cycle.


Function Description
SOC

RK3588 8nm; 8-core 64-bit processor architecture (4A76 + 4A55).

GPU

ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2;
OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module.

NPU 6TOPS computing power / 3-core architecture; Supports
int4/int8/int16/FP16/BF16/TF32.
VPU

Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS;
Supports H.264/H.265 video encoding, up to 8K30FPS.

DDR LPDDR4, with options for 4GB/8GB/16GB.
eMMC
eMMC 5.1, with options for 32GB/64GB/128 GB.
PMU RK806
OS Android / Ubuntu / Buildroot / Debian
Power DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector)
USB 3*Type-A USB3.0 HOST
1* Type-C USB3.1 OTG
1*4Pin PH2.0 USB2.0 HOST
Display

2*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps
1*Type-A HDMI 1.4 up to 1080P@60fps
Duel channel LVDS up to 1080P@60HZ
1* DP1.4(8K@30fps,type-C multiplexing)
1*DP1.2 2Lane Output
1*HDMI-IN(4K@60fps), support HDCP 2.3

Audio φ3.5mm earphone Jack with L/R audio out
φ3.5mm micphone Jack with Mic in
1*HDMI audio out
2*2.7W/4Ω speaker out with L/R channel
Camera 2* MIPI CSI (4 Lane) or 4*MIPI CSI (2 Lane) + 2* MIPI CSI (4 Lane)
Mini-PCIe mini PCIe for 2G/3G/4G/5G module
RK1808 AI computing card
M.2 M.2 NGFF ( M-KEY ) PCIE V3.0 x4 with NVMe SSD supported
SD Compatible with SDIO 3.0 protocol, system boot up supported
SIM card  Micro sim slot for Mini-PCIe 4G LTE module
RJ-45 2*10/100/1000-Mbps data transfer rates
RTC RTC power on and off supported
Serial port

3*Uart, 1*I2C

Keys 3* keys (power, reset, update)
Power output 12V, 5V, 3.3V,1.8V
Others 5*ADC,1*I2C,2*SATA
Dimensions Length * Width * Height (mm) 160*115*28.25
Operating Temperature  -10 ~ 70℃
Weight Approximately Approximately 173g (excluding peripherals)

Developer's Must-Read!

Welcome to our Resource Center, where you can find various helpful links and information for developers.
Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.
