Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LBA3588S
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces/mon
SoC: |
RK3588s |
Supplier Type: |
OEM/ODM |
CPU: |
8 Nm, 4*A76+4*A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K |
DDR: |
LPDDR4, 4GB/8GB/16GB(Optional) |
EMMC: |
EMMC 5.1, 32GB/64GB/128GB(Optional) |
Working Temperature: |
-10 ~ 70℃ |
Embedded: |
Yes |
PCB Interface: |
B2B |
OS: |
Android/Buildroot/Debian/Ubuntu |
Application: |
Robotics |
SoC: |
RK3588s |
Supplier Type: |
OEM/ODM |
CPU: |
8 Nm, 4*A76+4*A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K |
DDR: |
LPDDR4, 4GB/8GB/16GB(Optional) |
EMMC: |
EMMC 5.1, 32GB/64GB/128GB(Optional) |
Working Temperature: |
-10 ~ 70℃ |
Embedded: |
Yes |
PCB Interface: |
B2B |
OS: |
Android/Buildroot/Debian/Ubuntu |
Application: |
Robotics |

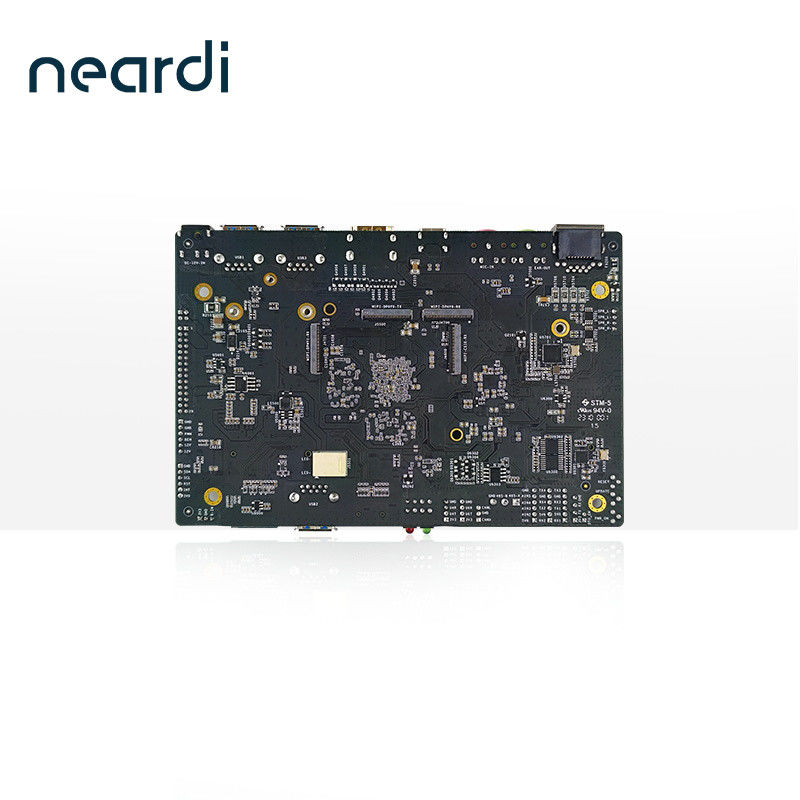

RK3588S Android Embedded Board ARM Mali-G610 MC4 B2B
The LBA3588S is a multifunctional industry board, meticulously crafted using the Rockchip RK3588S chip platform. This compact, thin, and flat board is loaded with various functions and rich interfaces, making it ideal for products with limited structural space.
Supporting Android, Buildroot, Debian, and Ubuntu systems, the LBA3588S offers high performance, reliability, and scalability. Its open system source code allows users to develop and customize applications. Our company provides comprehensive technical support, enabling developers and enterprise users to complete research and development efficiently, significantly shortening the product development and mass production cycle.
Function | Description |
SOC | RK3588S 8nm; 4*A76+4*A55 |
GPU | ARM Mali-G610 MC4; OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2 OpenCL 1.1/1.23/2.0 |
NPU | 6 TOPS, supports INT4/INT8/INT16/FP16/BF16/TF32 |
VPU | Decode: 8K@60fps H.265/H.264/AV1/VP9/AVS2Encode: 8K@30fps H.264/H.265 |
DDR | 4GB/8GB/16GB LPDDR4 |
eMMC | eMMC 5.1, 32GB/64GB/128GB |
System | Android / Ubuntu / Buildroot / Debian |
Size | L*W*H(mm) 150*100*12.67 |
Working Temperature | -10 - 70℃ |
Weight | 112g |
Hardware | |
Power | DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
USB | 3*Type-A USB3.0 HOST 1* Type-C USB3.1 OTG |
Display | 1*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps Dual channel LVDS up to 1080P@60HZ |
Audio | φ3.5mm earphone Jack with L/R audio out φ3.5mm microphone Jack with Mic in 2*2.7W/4Ω speaker out with L/R channel |
Camera | 2* MIPI CSI (4 Lane) or 4*MIPI CSI (2 Lane) + 2* MIPI CSI (4 Lane) |
Mini-PCIe | mini PCIe for 2G/3G/4G/5G module RK1808 AI computing card |
M.2 | M.2 NGFF ( M-KEY ) PCIE V3.0 x4 with NVMe SSD supported |
SD card | Compatible with SDIO 3.0 protocol, system boot-up supported |
SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
RJ-45 | 1*10/100/1000-Mbps data transfer rates |
RTC | RTC power on and off supported |
Serial port | 2*Uart,1*CANBUS,2*RS232,RS485,1*I2C |
Keys | 3* keys (power, reset, update) |
Wiki Documentation: | http://wiki.neardi.net/docs/welcome |
GitHub: | https://github.com/neardiGitLab: https://gitlab.com/neardiSDK |
Repository: | https://gitlab.com/neardi-linux |
Forum: | https://forum.neardi.com |
Video Tutorials: | https://www.youtube.com/@neardichannels |
