Single Board Computer SBC LKD3588S With 6 TOPS 8K 32GB / 64GB / 128GB

Product Details

Place of Origin: Shanghai, China

Brand Name: Neardi

Model Number: LKD3588S

Document: LKD3588S Development Board ....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiable

Packaging Details: 33.5×19×9 cm

Delivery Time: 7 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 10000/pieces/mon

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                6 TOPS Single Board Computer, 8K Single Board Computer, 32GB Single Board Computer


SoC:	RK3588S	Supplier Type:	OEM/ODM
CPU:	4A76 + 4A55	GPU:	ARM Mali-G610 MC4
NPU:	6 TOPS	VPU:	8K
DDR:	LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities.	EMMC:	EMMC 5.1, 32GB, 64GB, Or 128GB
Working Temperature:	-10 ~ 70℃	PCB Interface:	B2B
Embedded:	Yes	OS:	Android / Ubuntu / Buildroot / Debian
Application:	Edge AI Computing

SoC:	RK3588S
Supplier Type:	OEM/ODM
CPU:	4A76 + 4A55
GPU:	ARM Mali-G610 MC4
NPU:	6 TOPS
VPU:	8K
DDR:	LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities.
EMMC:	EMMC 5.1, 32GB, 64GB, Or 128GB
Working Temperature:	-10 ~ 70℃
PCB Interface:	B2B
Embedded:	Yes
OS:	Android / Ubuntu / Buildroot / Debian
Application:	Edge AI Computing

Product Description

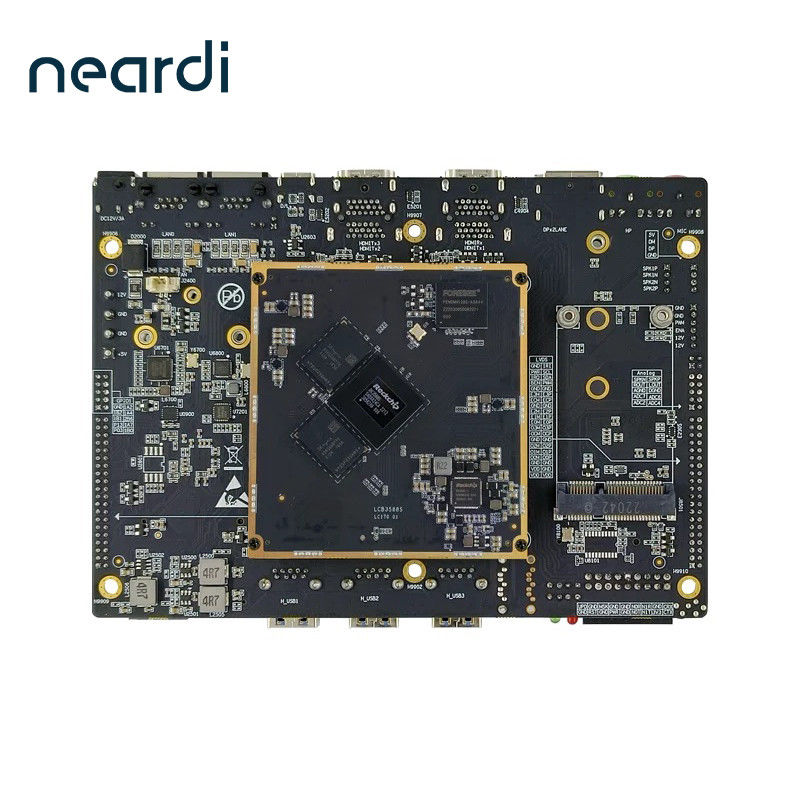

Single Board Computer SBC LKD3588S with 6 TOPS 8K 32GB / 64GB / 128GB

The LKD3588S, designed around the Rockchip RK3588 chip, includes our LCB3588S core module and a baseboard. These components are connected via a B2B connector and secured with four M2 screws, ensuring stability and reliability. This board is compact, slim, and versatile, making it ideal for products with limited space.

Featuring 3 Type-A USB 3.0 ports, 1 Type-C USB 3.1 port, and a USB 2.0 interface with a 4-pin PH2.0 connector, the LKD3588S can connect multiple USB cameras. It also has a mini-PCIe slot for external 4G modules. The board supports dual-band Wi-Fi 6, Bluetooth 5.0, dual 1000M Ethernet, UART, I2C, RS232, RS485, and CANBUS for various communication modules. It offers 2 HDMI outputs, 1 dual-channel LVDS output, and 1 DP interface output for diverse display options and supports multi-screen displays with different content. Additionally, it supports multiple MIPI-CSI camera interfaces and 1 HDMI 2.0 interface for input.

Supporting Android, Buildroot, Debian, and Ubuntu systems, the LKD3588S offers high performance, reliability, and scalability. It provides open system source code for users to develop and customize. Our company offers comprehensive technical support for developers and enterprise users, enabling efficient research and development and significantly shortening the product development and production cycle.

Function	Description
CPU	RK3588S 8nm; 8-core 64-bit processor architecture (4A76 + 4A55).
GPU	ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module.
NPU	6TOPS computing power / 3-core architecture; Supports int4/int8/int16/FP16/BF16/TF32
VPU	Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS; Supports H.264/H.265 video encoding, up to 8K30FPS
DDR	LPDDR4, with options for 4GB/8GB/16GB.
eMMC	eMMC 5.1, with options for 32GB/64GB/128 GB.
PMU	RK806
OS	Android / Ubuntu / Buildroot / Debian
Power	DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector)
USB	3Type-A USB3.0 HOST 1 Type-C USB3.1 OTG 1*4Pin PH2.0 USB2.0 HOST
Display	2*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps Dual channel LVDS up to 1080P@60HZ
Audio	φ3.5mm earphone Jack with L/R audio out φ3.5mm microphone Jack with Mic in 1*HDMI audio out
Camera	3* MIPI CSI (4 Lane) or 2MIPI CSI (2 Lane) + 2 MIPI CSI (4 Lane)
SD	Compatible with SDIO 3.0 protocol, system boot-up supported
SIM card	Micro sim slot for Mini-PCIe 4G LTE module
RJ-45	2*10/100/1000-Mbps data transfer rates
RTC	RTC power on and off supported
Serial port	3Uart, 1I2C,1*CAN
Keys	3* keys (power, reset, update)
Power output	12V, 5V, 3.3V,1.8V
Dimensions	Length * Width * Height (mm) 16011528.25
Operating Temperature	-10 ~ 70℃
Weight Approximately	Approximately 200g (excluding peripherals)

Developer's Must-Read!

Welcome to our Resource Center, where you can find various helpful links and information for developers.

Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.

Wiki Documentation:	http://wiki.neardi.net/docs/welcome
GitHub:	https://github.com/neardiGitLab: https://gitlab.com/neardiSDK
Repository:	https://gitlab.com/neardi-linux
Forum:	https://forum.neardi.com
Video Tutorials:	https://www.youtube.com/@neardichannels
