Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LPA3588
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces/mon
Embedded: |
Yes |
Operating Temperature: |
-10 ~ 70℃ |
NPU: |
6 TOPS |
EMMC: |
EMMC 5.1, With Options For 32GB/64GB/128GB. |
GPU: |
ARM Mali-G610 MC4 |
DDR: |
LPDDR4, With Options For 4GB/8GB/16GB. |
OS: |
Android/Buildroot/Debian/Ubuntu |
Product Category: |
Embedded Computer |
Embedded: |
Yes |
Operating Temperature: |
-10 ~ 70℃ |
NPU: |
6 TOPS |
EMMC: |
EMMC 5.1, With Options For 32GB/64GB/128GB. |
GPU: |
ARM Mali-G610 MC4 |
DDR: |
LPDDR4, With Options For 4GB/8GB/16GB. |
OS: |
Android/Buildroot/Debian/Ubuntu |
Product Category: |
Embedded Computer |

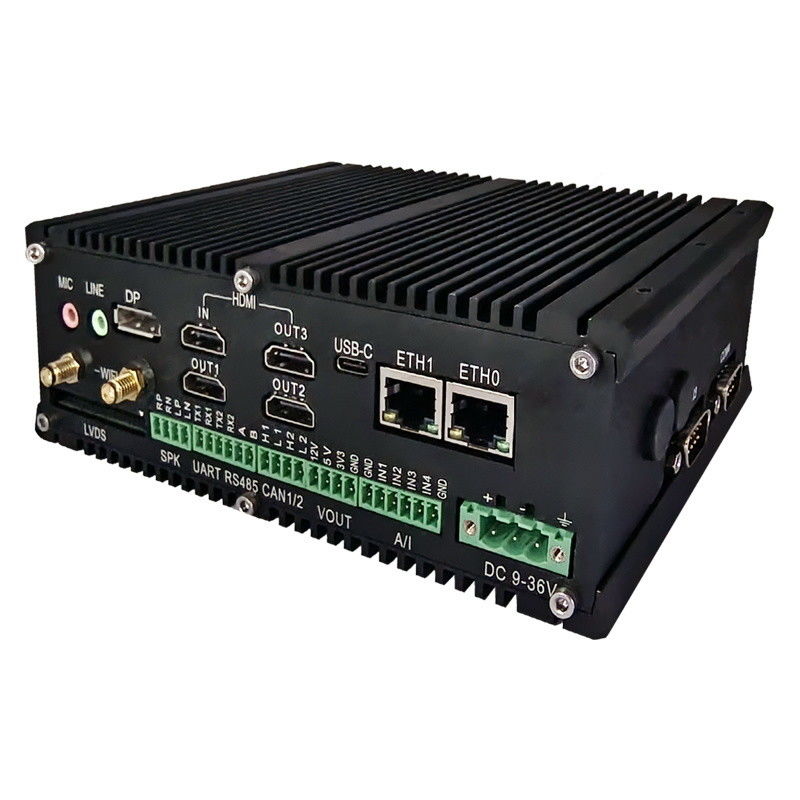

Introducing the LPA3588: a robust, fanless computer built around the Rockchip RK3588 chip, designed for demanding industrial environments. Its full-aluminum casing and innovative internal design efficiently dissipate heat, ensuring optimal performance even in harsh conditions. With three USB 3.0 ports and a full-function Type-C, the LPA3588 easily connects to multiple USB cameras. Two mini-PCIe interfaces allow expansion with 4G/5G modules or RK1808-based NPU cards, transforming it into an advanced AI vision system when combined with multiple cameras.
The LPA3588 boasts extensive connectivity: dual-band Wi-Fi 6, Bluetooth 5.0, dual Gigabit Ethernet, CANBUS, and RS485. It supports multiple displays with three HDMI outputs, one HDMI input, a DP interface, and a dual-channel LVDS interface, plus backlight and touchscreen control. An integrated M.2 NVMe 2280 SSD interface and the ability to connect eight AHD cameras simultaneously make it ideal for applications like panoramic stitching and ADAS. Each AHD camera supports up to 1920x1080@30Hz input using reliable GX12 aviation plugs.
Running Android, Buildroot, Debian, or Ubuntu, the LPA3588 offers high performance, reliability, and scalability. Open-source code allows for full customization, and our comprehensive tech support helps developers and businesses accelerate their R&D and time-to-market
| Function | Description |
| CPU | RK3588 8nm; 8-core 64-bit processor architecture (4A76 + 4A55). |
| GPU | ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module. |
| NPU | 6TOPS computing power / 3-core architecture; Supports int4/int8/int16/FP16/BF16/TF32 |
| VPU | Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS; Supports H.264/H.265 video encoding, up to 8K30FPS. |
| DDR | LPDDR4, with options for 4GB/8GB/16GB. |
| eMMC | eMMC 5.1, with options for 32GB/64GB/128GB. |
| PMU | RK806 |
| OS | Android / Buildroot / Debian / Ubuntu |
| Hardware Interface | |
| Power input | DC 9V - 36V,Default to 24V power supply input |
| USB | 3*Type-A USB3.0 HOST, 1*Type-c USB3.1 OTG |
| Display output | 3*Type-A HDMI 2.0, 1*DP, 1*Duel channel LVDS |
| Audio | 1*φ3.5mm audio out, 1*φ3.5mm microphone, 2*Speaker output with 10W@8Ω |
| Video input | 1*HDMI2.0 Input, 8*AHD input up to 1920*1080@30fps per channel |
| PCIe | 1*mini PCIe for 2G/3G/4G/5G LTE module, 1*mini PCIe for AI cards (optional) |
| M.2 | M.2 NGFF ( M-KEY ) PCIE V2.1 *4 with NVMe SSD supported |
| SATA | 1*SATA3.0 |
| SD card | Compatible with SDIO 3.0 protocol, system boot-up supported |
| SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
| RJ-45 | 2 x 10/100/1000 Ethernet |
| Connectivity | 2x Uart, 2x CAN BUS, 4x RS232, 1 x RS485 |
| Size | L*W*H(mm) 182*120*63 |
| Operating Temperature | -10 ~ 70℃ |
| Weight Approximately | 1138 g (excluding peripherals) |
Our Embedded Computer product comes with a comprehensive technical support package to ensure maximum functionality and performance. Our team of experienced engineers are available to assist with any technical issues or queries you may have.
We offer a range of services to support your Embedded Computer product, including:
We are committed to delivering high-quality technical support and services to our customers. Contact us for more information on how we can assist you with your Embedded Computer product.
Product Packaging:
Shipping:
| Developer’s Must-Read! | |
| Welcome to our Resource Center, where you can find various helpful links and information for developers. | |
| Official Links | Official Website: https://neardi.cn |
| The official website provides the following resources: | Product Center: Displays detailed information and specifications for all our products. Product Manuals: Offers user guides and technical support documentation for each product. Neardi Introduction: Introduces the features and applications of Neardi products. |
| Wiki Documentation: | http: //wiki.neardi.net/docs/welcome |
| Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: | • Hardware Information: Specifications, components, and technical parameters of the product. – Debugging Methods: Common troubleshooting steps and debugging techniques. • Interface Information: Available interfaces and their functional descriptions. • Firmware Programming: Guidance on firmware updates and programming processes. – Compiling SDK: Detailed instructions for compiling and configuring the SDK. • Linux and Android Development: Development guidelines and best practices for Linux and Android environments. |
| Technical Support Group: | contact sales to invite you join the Microsoft Teams group |
| Code Hosting | |
| GitHub: | https://github.com/neardi |
| GitLab: | https://gitlab.com/neardi |
| SDK Repository: | https://gitlab.com/neardi-linux |
| Forum: | https://forum.neardi.com |
| Video Tutorials: | www.youtube.com/@neardichannels |
