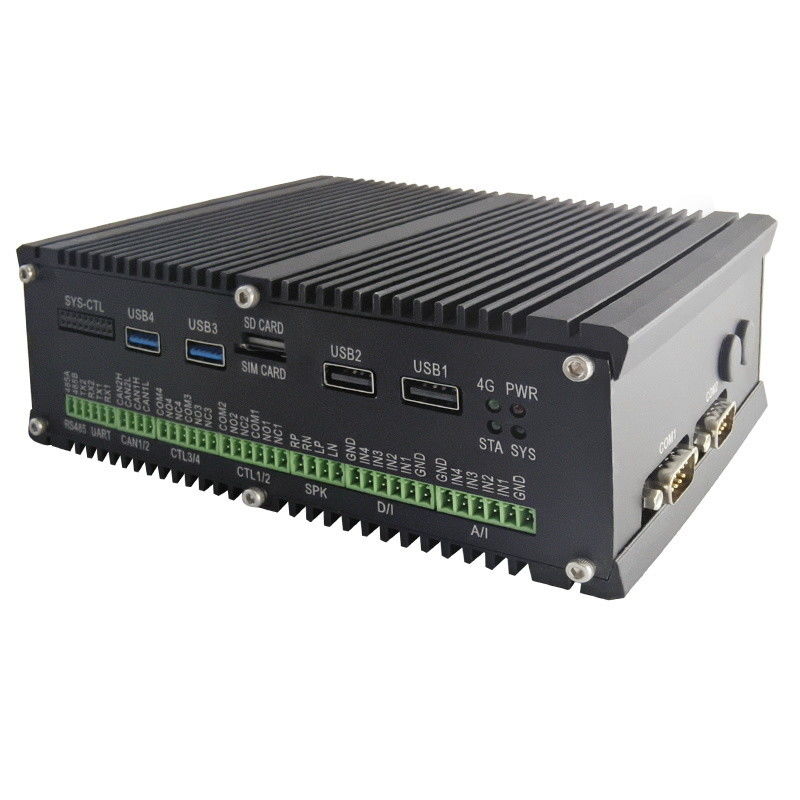

LPB3568 Embedded Industrial Computer Box PC RK3568 with HDMI Input Interface
LPB3568 Smart Host: Industrial-Grade Performance with Efficient Thermal Design
The LPB3568 Industrial Computer Box PC, powered by Rockchip’s RK3568 platform, is a high-performance industrial computing solution designed for edge computing, AI applications, and industrial automation. Its all-aluminum, fanless chassis is engineered for durability, ensuring efficient heat dissipation by transferring heat from critical components like the CPU and PMU to the external shell. This rugged and reliable design enables the LPB3568 to perform optimally in harsh industrial environments, making it ideal for a wide range of demanding applications.
| Function | Description |
| CPU | RK3568, 22 nm, quad-core Cortex-A55, up to 2.0GHZ |
| GPU | ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, 2D Graphics Engine |
| NPU | 10 TOPS, INT8/INT16/FP16/BFP16 MAC hybrid operation supported |
| VPU |
4K VP9 and 4K H265 up to 60fps video decoding1080P up to 100fps H265/ H264 video encoding8M ISP with HDR |
| DDR | LPDDR4, 1GB/2GB/4GB/8GB(Optional) |
| eMMC | eMMC 5.1, 8GB/16GB/32GB/64GB/128GB(Optional) |
| PMU | RK809 |
| Network | 2 x 10/100/1000Mbps Ethernet; Wi-Fi 2.4GHz/5GHz,802.11a/b/g/n/ac/ax; BT V5.0 with BLE supported 2G/3G/4G/5G modules supported (optional) |
| Storage | MicroSD (TF) Card Compatible with SDIO3.0 |
| OS | Android / Buildroot / Debian / Ubuntu |
| Hardware Interface | |
| Power input | DC 9V - 36V |
| USB | 1 x Type-A USB3.0 HOST, 1 x Type-A USB3.0 OTG, 2 x Type-A USB2.0 HOST |
| Display output | 2x Type-A HDMI 2.0, 1x VGA, 1x Duel channel LVDS |
| Audio | 1x φ3.5mm audio out, 1xφ3.5mm microphone, 2x Speaker output with 10W@8Ω |
| Display input | HDMI Input interface |
| PCIe | 1x mini PCIe for 2G/3G/4G/5G LTE module, 2 x mini PCIe for AI cards |
| M.2 | M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported |
| SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
| SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
| RJ-45 | 2 x 10/100/1000 Ethernet |
| Connectivity | 2x Uart, 2x CAN BUS, 4x RS232, 1 x RS485 |
| Input/output | 4x Relays, 4x digital input, 4x analog input |
| Size | LxWxH(mm): 182x120x63 |
Our Embedded Computer product comes with comprehensive technical support and services to ensure smooth integration and operation of the system. Our experienced technical team provides assistance in software and hardware integration, system configuration, and troubleshooting to ensure maximum uptime and productivity. We also offer customization services to tailor the system to specific requirements and ensure seamless integration with existing infrastructure. Our maintenance and repair services ensure quick and efficient resolution of any issues, minimizing downtime and ensuring continued performance. Additionally, we offer training and education services to equip customers with the knowledge and skills necessary to operate and maintain the system effectively.
