Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LPB3588
Document: LPB3588 Embedded Computer V....0.pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces/mon
SOC: |
RK3588 |
Supplier Type: |
OEM/ODM |
CPU: |
8nm, 4*A76+4*A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K |
DDR: |
LPDDR4, 4GB/8GB/16GB |
EMMC: |
EMMC 5.1, 32GB/64GB/128GB |
Working Temperature: |
-10~70℃ |
PCB Interface: |
B2B |
Embedded: |
Yes |
OS: |
Android/Buildroot/Debian/Ubuntu |
Application: |
Real-time Machine Control |
SOC: |
RK3588 |
Supplier Type: |
OEM/ODM |
CPU: |
8nm, 4*A76+4*A55 |
GPU: |
ARM Mali-G610 MC4 |
NPU: |
6 TOPS |
VPU: |
8K |
DDR: |
LPDDR4, 4GB/8GB/16GB |
EMMC: |
EMMC 5.1, 32GB/64GB/128GB |
Working Temperature: |
-10~70℃ |
PCB Interface: |
B2B |
Embedded: |
Yes |
OS: |
Android/Buildroot/Debian/Ubuntu |
Application: |
Real-time Machine Control |
Function | Description |
CPU | RK3588, 8 nm , 4 x Cortex-A76 + 4 x Cortex-A55, up to 2.4GHZ |
GPU | ARM Mali-G610 MC4; OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2 OpenCL 1.1/1.23/2.0 |
NPU | 6TOPS; int4/int8/int16/FP16/BF16/TF32 |
VPU | Decode: H.265/H.264/AV1/VP9/AVS2, 8K60FPS Encode: H.264/H.265, 8K30FPS |
DDR | LPDDR4, 4GB/8GB/16GB(Optional) |
eMMC | eMMC 5.1, 32GB/64GB/128GB(Optional) |
PMU | RK806, Supports a variety of power supply |
OS | Android / Buildroot / Debian / Ubuntu |

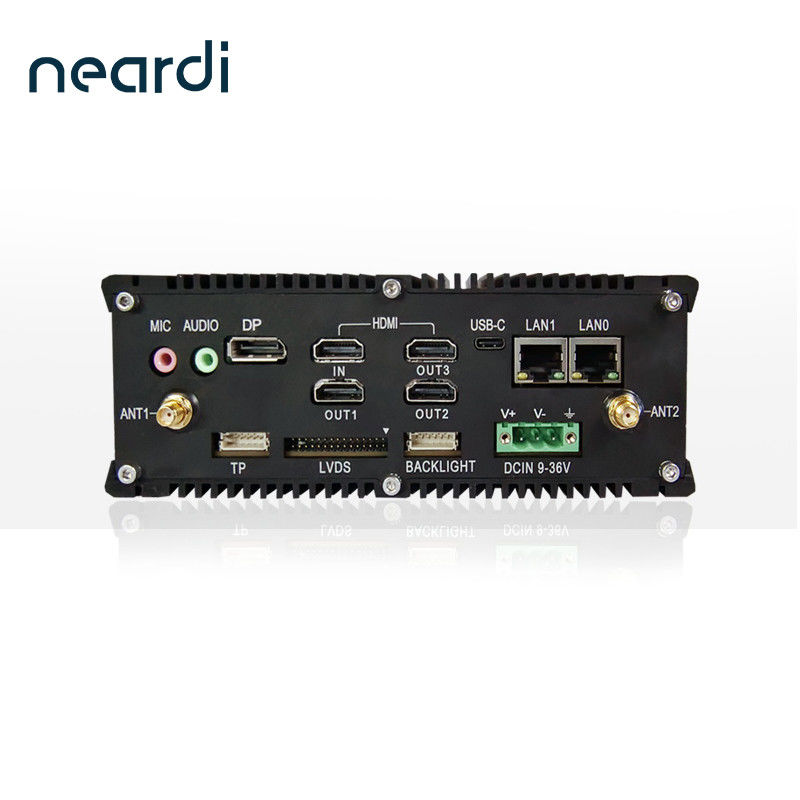

Hardware Interface | |
Power | DC 9V - 36V |
USB | 3*Type-A USB3.0 HOST 1*Type-c USB3.1 OTG |
Display output | 3*Type-A HDMI 2.0 1* DP1.2 1*Duel channel LVDS |
Audio | 1*φ3.5mm audio out, 1*φ3.5mm microphone 2*Speaker output with 10W@8Ω |
Display input | 1* HDMI-IN |
Net work | 2*10/100/1000Mbps Ethernet |
Extension Interface | 1*mini PCIe for 2G/3G/4G/5G LTE module; 1*mini PCIe for AI cards (optional); M.2 NGFF (M-KEY)PCIE V2.1 x4 with NVMe SSD supported; 1*SATA3.0; |
Connectivity | 2*Uart, 2*CAN BUS, 4*RS232, 1*RS485 |
Input/output | 4*Relays, 4*digital input, 4*analog input |
Wiki Documentation: | http://wiki.neardi.net/docs/welcome |
GitHub: | https://github.com/neardiGitLab: https://gitlab.com/neardiSDK |
Repository: | https://gitlab.com/neardi-linux |
Forum: | https://forum.neardi.com |
Video Tutorials: | https://www.youtube.com/@neardichannels |
