Neardi RK3588S LKD3588S Fanless Single Board Computer Sbc Computing

Product Details

Place of Origin: Shanghai, China

Brand Name: Neardi

Model Number: LKD3588S

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiable

Packaging Details: 33.5×19×9 cm

Delivery Time: 7 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 10000/pieces/mon

Get Best Price
Product Details
Highlight:

Fanless Single Board Computer

,

LKD3588S Single Board Computer

,

RK3588S Single Board Computer

SoC:
RK3588S
Supplier Type:
OEM/ODM
CPU:
4A76 + 4A55
GPU:
ARM Mali-G610 MC4
NPU:
6 TOPS
VPU:
8K
DDR:
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities.
EMMC:
EMMC 5.1, 32GB, 64GB, Or 128GB
Working Temperature:
-10 ~ 70℃
PCB Interface:
B2B
Embedded:
Yes
OS:
Android / Ubuntu / Buildroot / Debian
Application:
Medical Equipment/Networking And NAS
SoC:
RK3588S
Supplier Type:
OEM/ODM
CPU:
4A76 + 4A55
GPU:
ARM Mali-G610 MC4
NPU:
6 TOPS
VPU:
8K
DDR:
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities.
EMMC:
EMMC 5.1, 32GB, 64GB, Or 128GB
Working Temperature:
-10 ~ 70℃
PCB Interface:
B2B
Embedded:
Yes
OS:
Android / Ubuntu / Buildroot / Debian
Application:
Medical Equipment/Networking And NAS
Product Description
Neardi RK3588S LKD3588S Fanless Single Board Computer Sbc Computing

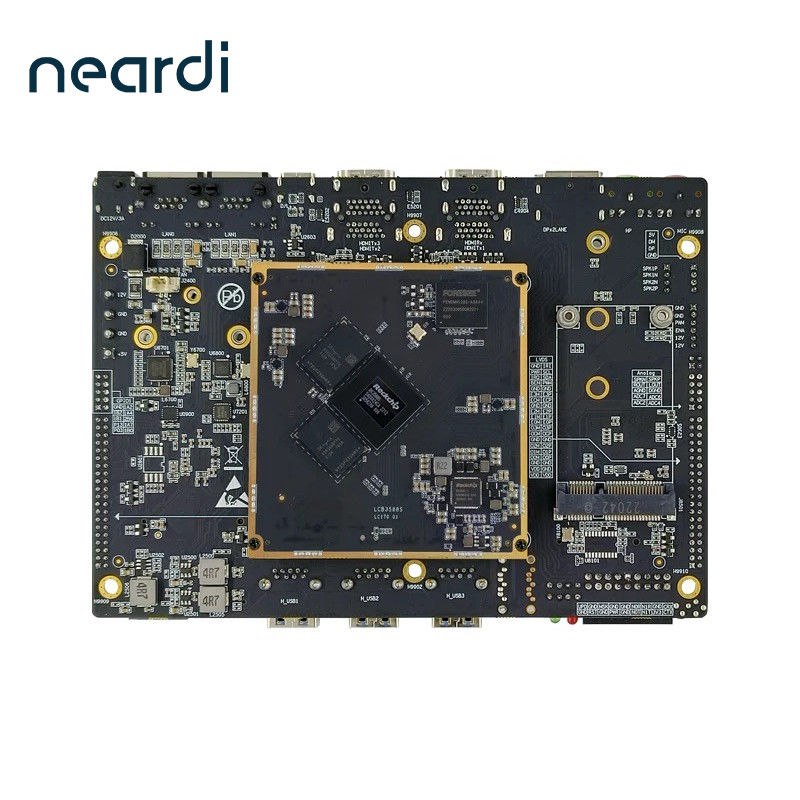

The LKD3588S is a beautifully crafted multifunctional development and evaluation board built on the Rockchip RK3588 chip platform. It includes our company's LCB3588S core module and baseboard. The core module attaches to the baseboard via a B2B connector and is secured with four M2 screws, ensuring stability and reliability. This board is highly versatile, featuring a rich set of interfaces, compact size, and slim profile, making it ideal for products with limited structural space.

The LKD3588S comes with 3 Type-A USB 3.0 ports, 1 Type-C USB 3.1 port, and 1 USB 2.0 interface with a 4-pin PH2.0 connector, allowing for the connection of multiple USB cameras. It also includes a mini-PCIe slot for external 4G modules. The board supports dual-band WIFI6, BT5.0, dual 1000M Ethernet, UART, I2C, RS232, RS485, and CANBUS for various communication modules. It offers 2 HDMI outputs, 1 dual-channel LVDS output, and 1 DP interface output for diverse display options, supporting multi-screen displays with different content. Additionally, it supports multiple MIPI-CSI camera interfaces for input and 1 HDMI 2.0 interface for input.

The LKD3588S is compatible with Android, buildroot, Debian, and Ubuntu systems, providing high performance, reliability, and scalability. It offers open system source code, allowing users to develop and customize their projects. Our company provides comprehensive technical support for developers and enterprise users, helping them efficiently complete research and development work and significantly shorten the product development and mass production cycle.


Function Description
CPU

RK3588S 8nm; 8-core 64-bit processor architecture (4A76 + 4A55).

GPU

ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2;
OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module.

NPU 6TOPS computing power / 3-core architecture; Supports
int4/int8/int16/FP16/BF16/TF32
VPU

Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS;
Supports H.264/H.265 video encoding, up to 8K30FPS

DDR LPDDR4, with options for 4GB/8GB/16GB.
eMMC
eMMC 5.1, with options for 32GB/64GB/128GB.
PMU RK806
OS Android / Ubuntu / Buildroot / Debian
Power DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector)
USB 3*Type-A USB3.0 HOST
1* Type-C USB3.1 OTG
1*4Pin PH2.0 USB2.0 HOST
Display

2*Type-A HDMI 2.1 up to 8K@60fps or 4K@120fps
Duel channel LVDS up to 1080P@60HZ

Audio φ3.5mm earphone Jack with L/R audio out
φ3.5mm micphone Jack with Mic in
1*HDMI audio out
Camera 3* MIPI CSI (4 Lane) or 2*MIPI CSI (2 Lane) + 2* MIPI CSI (4 Lane)
SD Compatible with SDIO 3.0 protocol, system boot up supported
SIM card  Micro sim slot for Mini-PCIe 4G LTE module
RJ-45 2*10/100/1000-Mbps data transfer rates
RTC RTC power on and off supported
Serial port

3*Uart, 1*I2C,1*CAN

Keys 3* keys (power, reset, update)
Power output 12V, 5V, 3.3V,1.8V
Dimensions Length * Width * Height (mm) 160*115*28.25
Operating Temperature  -10 ~ 70℃
Weight Approximately Approximately 200g (excluding peripherals)

Neardi RK3588S LKD3588S Fanless Single Board Computer Sbc Computing 0Neardi RK3588S LKD3588S Fanless Single Board Computer Sbc Computing 1

Developer's Must-Read!

Welcome to our Resource Center, where you can find various helpful links and information for developers.
Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.
