Mini Industrial Embedded Box Computer PC EMMC 5.1 32GB 64GB 128GB

Product Details

Place of Origin: Shanghai, China

Brand Name: Neardi

Model Number: LPB3588

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiable

Packaging Details: 33.5×19×9 cm

Delivery Time: 7 days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 10000/pieces/mon

Get Best Price
Product Details
Highlight:

EMMC embedded box computer

,

32GB embedded box computer

,

128GB mini industrial computer

SOC:
RK3588
Supplier Type:
OEM/ODM
CPU:
8nm, 4*A76+4*A55
GPU:
ARM Mali-G610 MC4
NPU:
6 TOPS
VPU:
8K
DDR:
LPDDR4, 4GB/8GB/16GB
EMMC:
EMMC 5.1, 32GB/64GB/128GB
Working Temperature:
-10~70℃
PCB Interface:
B2B
Embedded:
Yes
OS:
Android/Buildroot/Debian/Ubuntu
Application:
Real-time Machine Control
SOC:
RK3588
Supplier Type:
OEM/ODM
CPU:
8nm, 4*A76+4*A55
GPU:
ARM Mali-G610 MC4
NPU:
6 TOPS
VPU:
8K
DDR:
LPDDR4, 4GB/8GB/16GB
EMMC:
EMMC 5.1, 32GB/64GB/128GB
Working Temperature:
-10~70℃
PCB Interface:
B2B
Embedded:
Yes
OS:
Android/Buildroot/Debian/Ubuntu
Application:
Real-time Machine Control
Product Description
Neardi ODM LPB3588 RK3588 Embedded Industrial Box Pc Industrial All-In-One Pc


The LPB3588 smart host is meticulously designed around the Rockchip RK3588 chip platform. Its all-aluminum, fanless body features an innovative internal structure that efficiently transfers heat from key components like the CPU and PMU to the external aluminum shell. This design ensures the entire casing acts as a heat dissipation material, allowing the LPB3588 to perform well in stringent working environments. It is widely used in various industrial scenarios.

With its rich interfaces and superior performance, the LPB3588 smart host can function as a data acquisition terminal, video processing terminal, visual computing terminal, and artificial intelligence terminal in diverse industrial settings.



Product Parameters

Function Description
CPU RK3588, 8 nm , 4 x Cortex-A76 + 4 x Cortex-A55, up to 2.4GHZ
GPU ARM Mali-G610 MC4; OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2
OpenCL 1.1/1.23/2.0
NPU 6TOPS; int4/int8/int16/FP16/BF16/TF32
VPU Decode: H.265/H.264/AV1/VP9/AVS2, 8K60FPS
Encode: H.264/H.265, 8K30FPS
DDR LPDDR4, 4GB/8GB/16GB(Optional)
eMMC eMMC 5.1, 32GB/64GB/128GB(Optional)
PMU RK806, Supports a variety of power supply
OS Android / Buildroot / Debian / Ubuntu



Hardware Interface
Power DC 9V - 36V
USB 3*Type-A USB3.0 HOST
1*Type-c USB3.1 OTG
Display output 3*Type-A HDMI 2.0
1* DP1.2
1*Duel channel LVDS
Audio 1*φ3.5mm audio out,
1*φ3.5mm microphone
2*Speaker output with 10W@8Ω
Display input 1* HDMI-IN
Net work 2*10/100/1000Mbps Ethernet
Extension Interface 1*mini PCIe for 2G/3G/4G/5G LTE module;
1*mini PCIe for AI cards (optional);
M.2 NGFF (M-KEY)PCIE V2.1 x4 with NVMe SSD supported;
1*SATA3.0;
Connectivity 2*Uart, 2*CAN BUS, 4*RS232, 1*RS485
Input/output 4*Relays, 4*digital input, 4*analog input

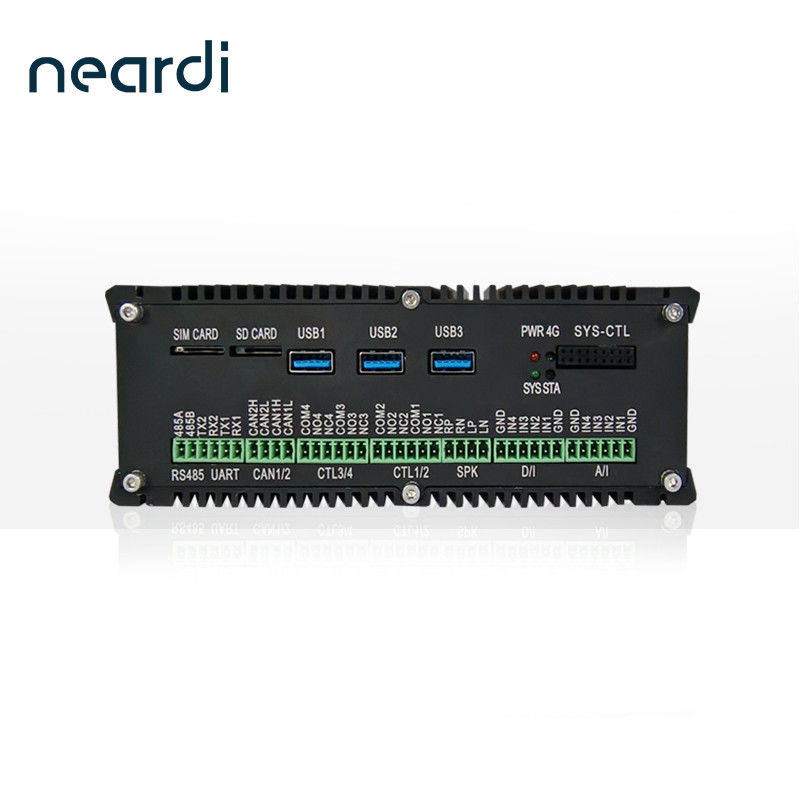

Mini Industrial Embedded Box Computer PC EMMC 5.1 32GB 64GB 128GB 0


Mini Industrial Embedded Box Computer PC EMMC 5.1 32GB 64GB 128GB 1

Developer's Must-Read!

Welcome to our Resource Center, where you can find various helpful links and information for developers.
Please visit the corresponding Wiki documentation link to obtain detailed information about the product of your choice, including the following: Hardware information: Specifications, components, and technical parameters of the product debugging Methods: Common troubleshooting steps and debugging techniques. Interface Information: Available interfaces and their functional descriptions.Firmware Programming: Guidance on firmware updates and programming processesCompiling SDK: Detailed instructions for compiling and configuring the SDK.Linux and Android Development: Development guidelines and best practices for Linux and Android environments.

Company Introduction

Shanghai Neardi Technology Co., Ltd. was established in 2014, focusing on the field of intelligent electronic products, providing customers with one-stop solutions for design and production. The company adheres to the strategy of technological innovation and professional service, integrates the technical precipitation and industry experience of Neardi Technology, helps partners to introduce products to the market quickly and efficiently, effectively saves customers' time and resources, and becomes the product accelerator of partners.
Mini Industrial Embedded Box Computer PC EMMC 5.1 32GB 64GB 128GB 2



After-sale Service Policy

1. Please take a valid purchasing voucher for maintenance requests when you have product failure problems.
2. We kindly provide one year of warranty to the ARM board except for non-warranty components(CPU, RAM, and Flash/ storage chips) and a three-month warranty to display and power adapter from the ex-factory date.
3. Product failure in expired time, we kindly provide paid maintenance service. Charges depend on the assessment by the maintenance department. If goods are seriously damaged, the accessory is discontinued, or other uncontrollable conditions may cause the products can not be fixed, Neardi will not provide maintenance service.
4. Neardi kindly provides one month of warranty for the repaired items, payment should be made to the appointed account. Note: This warranty is only valid for the repaired problem.
5. Please take necessary data backup before the defective item is sent back up for maintenance, all risks caused by no backup should be borne by customers.
6. Neardi will reject items sent back without our permission.
7. To goods within the warranty period, freight should be shared by both sides, otherwise, the customer should bear all maintenance-related freight and customs fees.
Non-warranty Coverage(Paid Maintenance Service):
1. Products out of warranty period;
2. Non-warranty components including CPU, RAM, and Flash chips;
3. Failure caused by improper operations like PCB short circuit, rupture;
4. Bar code or factory ID tampered or other operations cause the products can not be recognized;
5. The bar code or factory ID on the purchasing voucher is not matched with the product itself;
6. Product failure caused by unauthorized maintenance, improper operations, misuse operations, or other unexpected behaviors.
7. Product failure caused by force majeure.
8. Other failures caused during delivery.
