Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LPA3588J
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces/mon
Embedded: |
Yes |
Operating Temperature: |
-10 ~ 70℃ |
NPU: |
6 TOPS |
EMMC: |
EMMC 5.1, With Options For 32GB/64GB/128GB. |
GPU: |
ARM Mali-G610 MC4 |
DDR: |
LPDDR4, With Options For 4GB/8GB/16GB. |
OS: |
Android/Buildroot/Debian/Ubuntu |
Product Category: |
Embedded Computer |
Embedded: |
Yes |
Operating Temperature: |
-10 ~ 70℃ |
NPU: |
6 TOPS |
EMMC: |
EMMC 5.1, With Options For 32GB/64GB/128GB. |
GPU: |
ARM Mali-G610 MC4 |
DDR: |
LPDDR4, With Options For 4GB/8GB/16GB. |
OS: |
Android/Buildroot/Debian/Ubuntu |
Product Category: |
Embedded Computer |
Meet the LPA3588 intelligent computer, designed around the Rockchip RK3588 chip platform. This powerful device features a full aluminum, fanless design and an innovative internal structure that efficiently channels heat from the CPU and PMU to the external casing. This setup ensures the device performs optimally even in the harshest environments, making it ideal for a wide range of industrial applications.
Equipped with 3 USB 3.0 HOST ports and a full-function Type-C interface, the LPA3588 can connect multiple USB cameras. It also includes 2 onboard mini-PCIe interfaces for expanding with 4G/5G modules or NPU computing cards based on the RK1808, creating a sophisticated AI vision computer when used with multiple cameras.

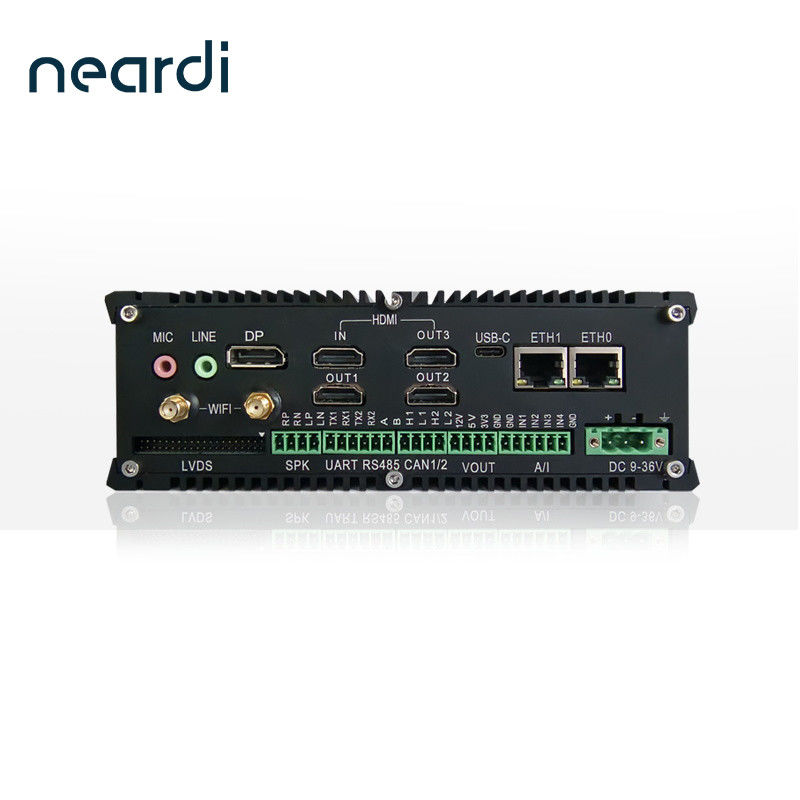

The LPA3588 supports dual-band WIFI 6, BT5.0, 2 Gigabit Ethernet ports, CANBUS, RS485, and other communication modules, providing extensive connectivity options. It features 3 HDMI outputs, 1 HDMI input, audio input, and output, a DP interface output, a dual-channel LVDS interface, backlight control, and a touch screen interface. The built-in M.2 NVMe 2280 SSD interface connects to various display interfaces and supports multi-screen independent displays. It can connect 8 AHD cameras simultaneously, each supporting 1920x1080@30Hz video input, using reliable GX12 aviation connectors, making it perfect for panoramic stitching and ADAS vehicle intelligent terminals.
Supporting Android, Buildroot, Debian, and Ubuntu operating systems, the LPA3588 offers high performance, reliability, and scalability. The open system source code allows for secondary development and customization. Our company provides comprehensive technical support to assist developers and enterprise users in completing R&D efficiently and bringing products to market quickly.
| Function | Description |
| CPU | RK3588 8nm; 8-core 64-bit processor architecture (4A76 + 4A55). |
| GPU | ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module. |
| NPU | 6TOPS computing power / 3-core architecture; Supports int4/int8/int16/FP16/BF16/TF32 |
| VPU | Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS; Supports H.264/H.265 video encoding, up to 8K30FPS. |
| DDR | LPDDR4, with options for 4GB/8GB/16GB. |
| eMMC | eMMC 5.1, with options for 32GB/64GB/128GB. |
| PMU | RK806 |
| OS | Android / Buildroot / Debian / Ubuntu |
| Hardware Interface | |
| Power input | DC 9V - 36V,Default to 24V power supply input |
| USB | 3*Type-A USB3.0 HOST, 1*Type-c USB3.1 OTG |
| Display output | 3*Type-A HDMI 2.0, 1*DP, 1*Duel channel LVDS |
| Audio | 1*φ3.5mm audio out, 1*φ3.5mm microphone, 2*Speaker output with 10W@8Ω |
| Video input | 1*HDMI2.0 Input, 8*AHD input up to 1920*1080@30fps per channel |
| PCIe | 1*mini PCIe for 2G/3G/4G/5G LTE module, 1*mini PCIe for AI cards (optional) |
| M.2 | M.2 NGFF ( M-KEY ) PCIE V2.1 *4 with NVMe SSD supported |
| SATA | 1*SATA3.0 |
| SD card | Compatible with SDIO 3.0 protocol, system boot-up supported |
| SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
| RJ-45 | 2 x 10/100/1000 Ethernet |
| Connectivity | 2x Uart, 2x CAN BUS, 4x RS232, 1 x RS485 |
| Size | L*W*H(mm) 182*120*63 |
| Operating Temperature | -10 ~ 70℃ |
| Weight Approximately | 1138 g (excluding peripherals) |
Our Embedded Computer product comes with a comprehensive technical support package to ensure maximum functionality and performance. Our team of experienced engineers are available to assist with any technical issues or queries you may have.
We offer a range of services to support your Embedded Computer product, including:
We are committed to delivering high-quality technical support and services to our customers. Contact us for more information on how we can assist you with your Embedded Computer product.
