Product Details
Place of Origin: Shanghai, China
Brand Name: Neardi
Model Number: LCS3588
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 33.5×19×9 cm
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000/pieces/mon
CPU: |
4A76 + 4A55 |
DDR: |
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities. |
EMMC: |
EMMC 5.1, With Options For 32GB, 64GB, Or 128GB Capacities. |
GPU: |
Mali-T860MP4 GPU |
Working Temperature: |
Enterprise Grade: -20°C To 70°C; Industrial Grade: -40°C To 85°C |
OS: |
Android / Ubuntu / Buildroot / Debian |
CPU: |
4A76 + 4A55 |
DDR: |
LPDDR4, With Options For 4GB, 8GB, Or 16GB Capacities. |
EMMC: |
EMMC 5.1, With Options For 32GB, 64GB, Or 128GB Capacities. |
GPU: |
Mali-T860MP4 GPU |
Working Temperature: |
Enterprise Grade: -20°C To 70°C; Industrial Grade: -40°C To 85°C |
OS: |
Android / Ubuntu / Buildroot / Debian |
RK3588 Android System On Module SoM Android / Ubuntu / Buildroot / Debian

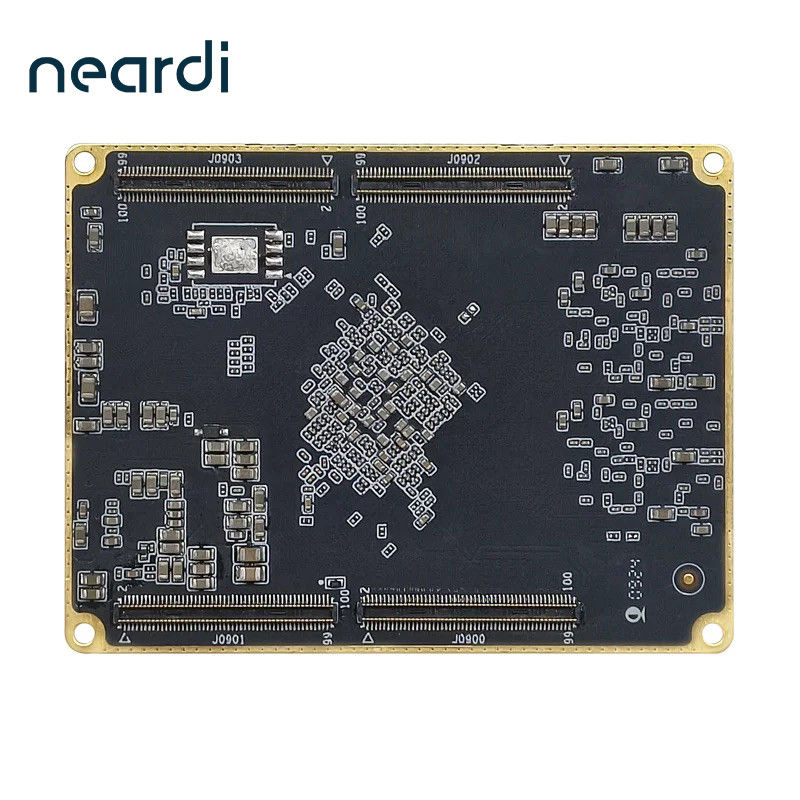

Meet the LCS3588 core module, precision-engineered on the Rockchip RK3588 platform. This module offers powerful functionality in a compact 65mm x 50mm size. It connects to the baseboard with four 100Pin board-to-board connectors (0.4mm pitch) and is secured by four M2 screws, ensuring complete access to the RK3588 pin signals. The module excels in high-speed data transfer, vibration resistance, automated assembly compatibility, and a wide operating temperature range, making it ideal for challenging environments. Built with reliability and environmental compliance in mind, it ensures long-term performance.
Featuring an RK3588 CPU, LPDDR4/LPDDR4X memory (ranging from 2GB to 16GB), high-speed eMMC 5.1 storage (options between 32GB and 128GB), and a power management system powered by the RK806 with advanced voltage regulation and DVFS support, the LCS3588 is designed for excellence.
Adopting a modular approach, the LCS3588 includes all functional pins of the CPU, thoroughly tested and verified for reliability. This helps businesses save time, reduce development costs, and enhance efficiency when building their products.
| Function | Description |
| CPU | RK3588S 8nm; 8-core 64-bit processor architecture (4A76 + 4A55) |
| GPU | ARM Mali-G610 MC4; Supports OpenGL ES 1.1/2.0/3.1/3.2; Vulkan 1.1/1.2; OpenCL 1.1/1.23/2.0; High-performance 2D image acceleration module. |
| NPU | 6TOPS computing power / 3-core architecture; Supports int4/int8/int16/FP16/BF16/TF32. |
| VPU | Supports H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS; Supports H.264/H.265 video encoding, up to 8K30FPS. |
| DDR | LPDDR4, with options for 4GB/8GB/16GB. |
| eMMC | eMMC 5.1, with options for 32GB/64GB/128 GB. |
| PMU | RK806 |
| OS | Android / Ubuntu / Buildroot / Debian |
| Video Input Interface | MIPI interface : 2 * MIPI(4 lanes) + 4 * MIPI(2 lanes), totally support 6 cameras input; 3 * MIPI(4 lanes) + 2 * MIPI(2 lanes), totally support 5 cameras input; 4 * MIPI(4 lanes) , totally support 4 cameras input; DVP interface: 8/10/12/16-bit standard DVP interface, up to 150MHz input data; HDMI RX interface: HDMI 2.0 2160p@60 Hz, Support HDCP2.3 and HDCP1.4; |
| Video Output Interface | 1 * HDMI2.1 up to 8K@60fps; 1 * HDMI2.0 up to 4K@60fps; 2 * MIPI-DSI up to 4K@60fps; 2 * DP1.4 up to 8K@30fps; 2 * eDP1.3 up to 4K@60Hz; 1 * BT.1120 up to 1080@60fps; |
| Image Signal Processor | 8064*6048@15 dual ISP; 6528*4898@30 dual ISP; 4672*3504@30 single ISP; |
| Video Output Processor | Video Port0 up to 7680*4320@60Hz; Video Port1 up to 4096*4320@60Hz; |
| Operating temperature | Enterprise Grade: -20°C to 70°C Industrial Grade: -40°C to 85°C |
| PCB interface | B2B(400 Pin 0.4mm Pitch) |
| PCB layers | 12 layers |
| PCB size | L* W *H(mm):65 *50 * 4.74 |
The System On Module (SoM) product offers technical support and services to ensure the optimal performance of the system. Our team provides assistance with hardware and software integration, system design and customization, testing and validation, and product certification. We also offer training and documentation to help customers effectively use and maintain the SoM product. Our goal is to provide reliable and responsive support to ensure customer satisfaction and success.
Product Packaging:
The System On Module (SoM) product will be packaged in a sturdy cardboard box with foam inserts to protect the module from any damage during transportation. The box will be labeled with the product name and any necessary product information, such as part number or quantity.
Product Shipping:
The SoM product will be shipped via a reliable shipping carrier, such as FedEx or UPS, to ensure timely and secure delivery. Customers will be provided with a tracking number to monitor the status of their shipment. Shipping costs may vary depending on the destination and shipping method selected.
Q: Where is the System On Module SoM product manufactured?
A: The product is manufactured in Shanghai, China.
Q: What is the brand name of the System On Module SoM product?
A: The brand name of the product is Neardi.
Q: What is the minimum order quantity for the System On Module SoM product?
A: The minimum order quantity for the product is 1 piece.
Q: What are the available payment terms for the System On Module SoM product?
A: The available payment terms are L/C, D/A, D/P, and T/T.
Q: What is the delivery time for the System On Module SoM product?
A: The delivery time for the product is 7 days.
Q: What is the packaging size of the System On Module SoM product?
A: The packaging size of the product is 33.5×19×9 cm.
Q: What is the supply ability for the System On Module SoM product?
A: The supply ability for the product is 10000 pieces per month.
Q: Is the price for the System On Module SoM product negotiable?
A: Yes, the price for the product is negotiable.
